Products · 33 machines in 8 ranges

Machines

Magnetic drilling

TwisTech 6 machines · 16–31 mm twist drilling

Magnetic drills built around twist drilling, reaming and tapping.

Fig. 01

TwisTech

TwisTech 16

Magnetic drill machine

Dynamic Twist Drilling Power

10.5 kg
Weight: 1380 W
Power: 16 mm
Twist drilling: 150 mm
Drilling depth

View machine Request a quote

Specification Magnetic drilling

Twist drilling Ø: 16 mm
Tapping: M10
Twist drilling depth: 150 mm
Motor power: 1380 W
Speed: 100–750 rpm
Spindle: Direct drill chuck
Stroke: 200 mm
Magnetic force: 700 kgf

Electronic speed control
Reverse / forward
Head height adjustment
Stroke adjustment
Overload protection

Full specification

Fig. 02

TwisTech

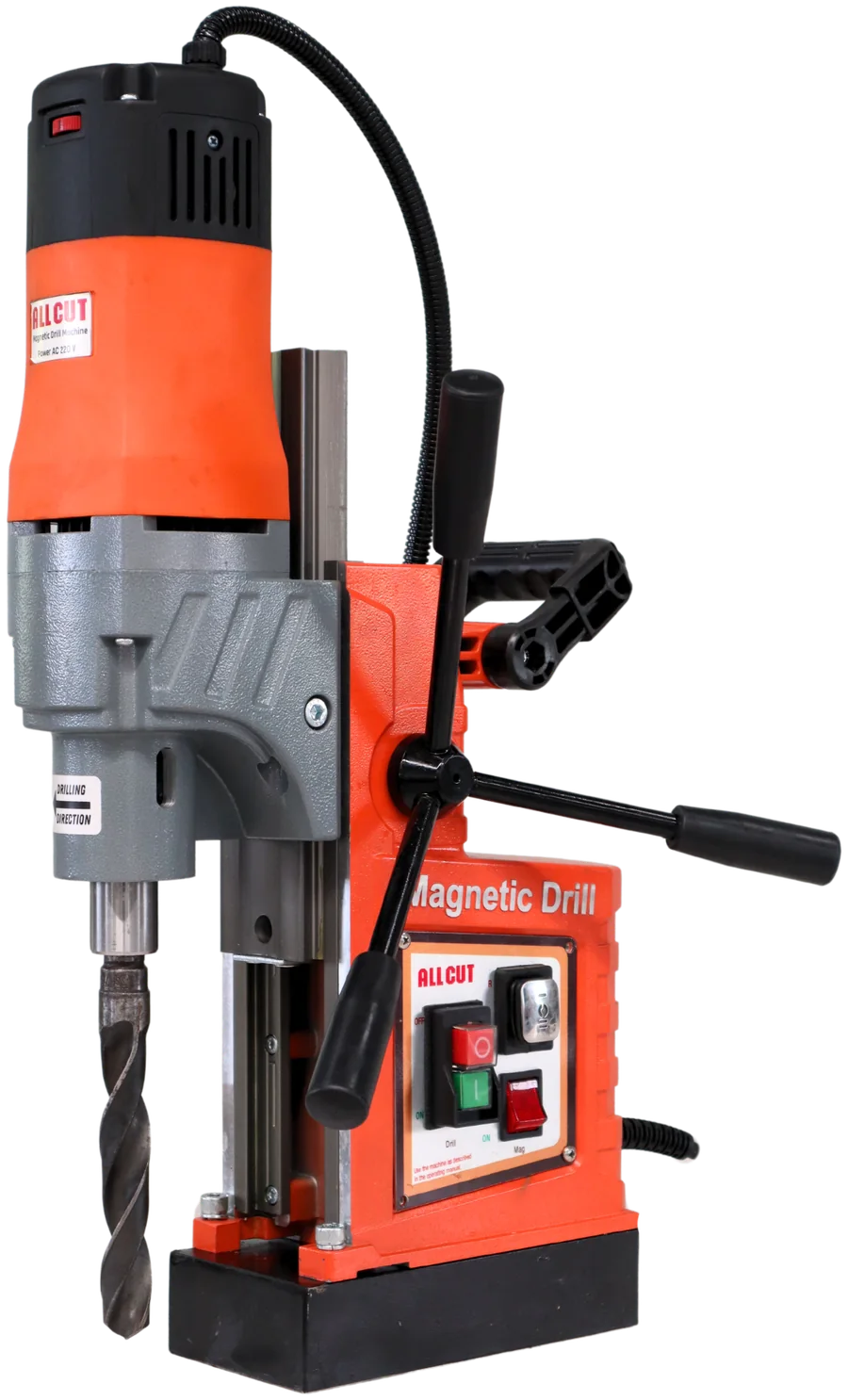

TwisTech 23

Magnetic drill machine

Dynamic Twist Drilling Power

18 kg
Weight: 1500 W
Power: 23 mm
Twist drilling: 60 mm
Stroke adjustment

View machine Request a quote

Specification Magnetic drilling

Twist drilling Ø: 23 mm
Tapping: M16
Reaming Ø: 23 mm
Twist drilling depth: 200 mm
Motor power: 1500 W
Speed: 100–640 rpm
Gearbox: 1-speed
Spindle: MT-2

Electronic speed control
Reverse / forward
Head height adjustment
Stroke adjustment
Overload protection

Full specification

Fig. 03

TwisTech

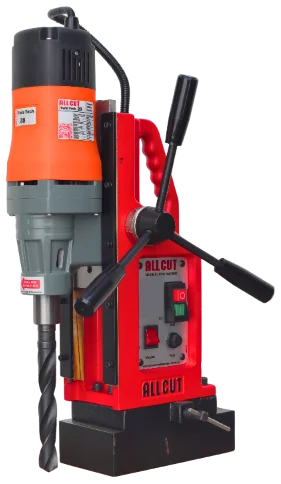

TwisTech 28

Magnetic drill machine

1500 W
Power: 28 mm
Twist drilling: 250 mm
Stroke: 28 kg
Weight

View machine Request a quote

Specification Magnetic drilling

Twist drilling Ø: 28 mm
Reaming Ø: 28 mm
Twist drilling depth: 200 mm
Motor power: 1500 W
Speed: 550 rpm
Gearbox: 1-speed
Spindle: MT-3
Stroke: 250 mm

Universal base
Overload protection

Full specification

Fig. 04

TwisTech

TwisTech 28 V

Magnetic drill machine

Dynamic Twist Drilling Power

28 kg
Weight: 1500 W
Power: 28 mm
Twist drilling: 200 mm
Drilling depth

View machine Request a quote

Specification Magnetic drilling

Twist drilling Ø: 28 mm
Tapping: M20
Reaming Ø: 28 mm
Twist drilling depth: 200 mm
Motor power: 1500 W
Speed: 100–640 rpm
Gearbox: 1-speed
Spindle: MT-3

Electronic speed control
Reverse / forward
Universal base
Overload protection

Full specification

Fig. 05

TwisTech

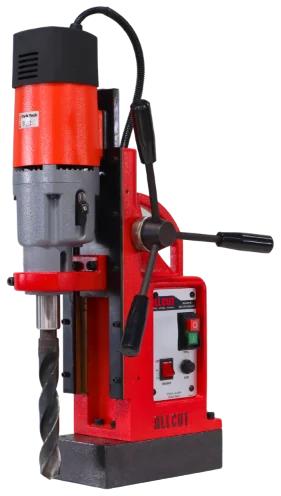

TwisTech 31/2

Magnetic drill machine

1800 W
Power: 31 mm
Twist drilling: 300 mm
Stroke: 30 kg
Weight

View machine Request a quote

Specification Magnetic drilling

Twist drilling Ø: 31 mm
Reaming Ø: 31 mm
Twist drilling depth: 250 mm
Motor power: 1800 W
Speed: 260/460 rpm
Gearbox: 2-speed
Spindle: MT-3
Stroke: 300 mm

Overload protection

Full specification

Fig. 06

TwisTech

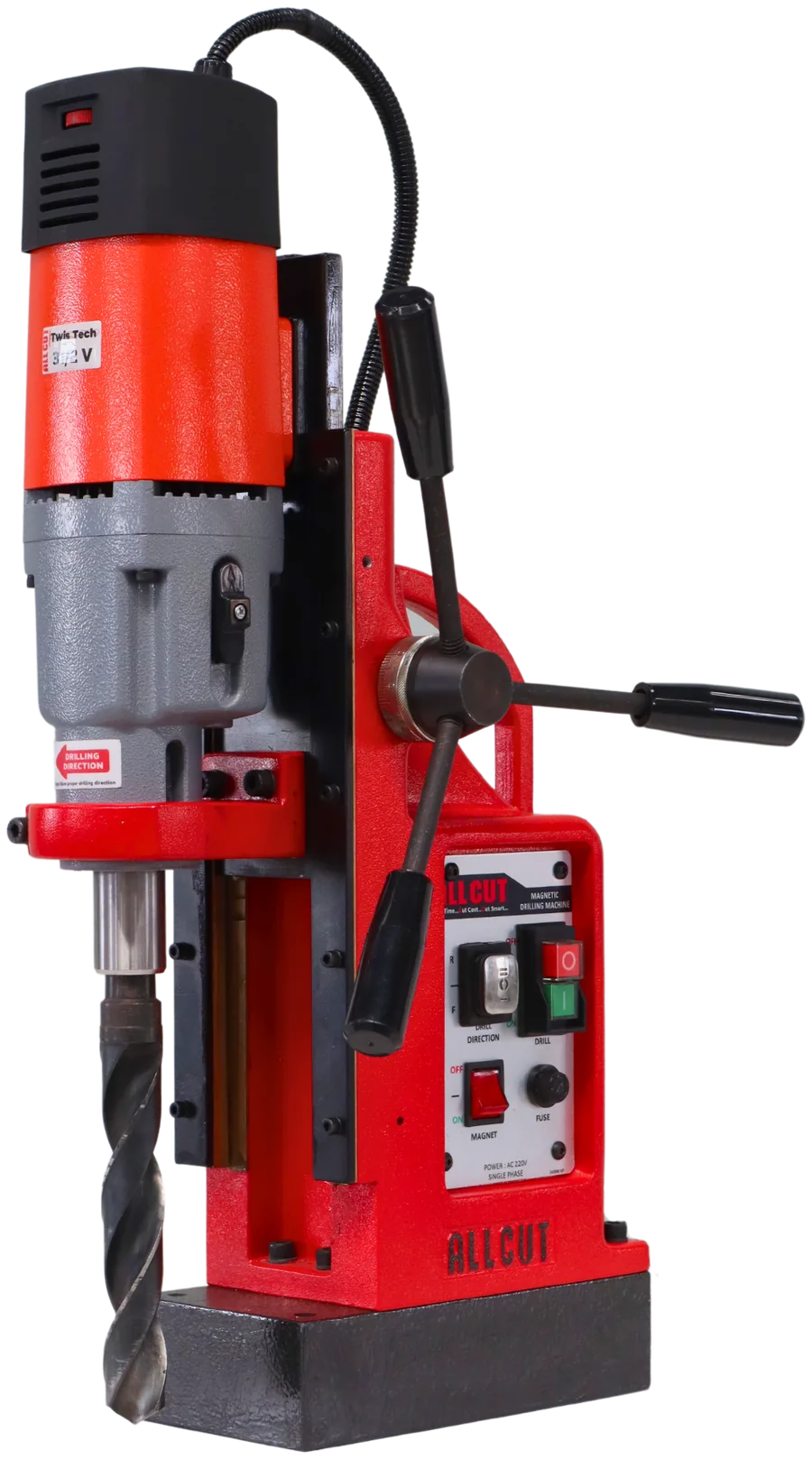

TwisTech 31/2 V

Magnetic drill machine

Dynamic Twist Drilling Power

31 kg
Weight: 1800 W
Power: 31 mm
Twist drilling: 250 mm
Drilling depth

View machine Request a quote

TwisTech 31/2 V — Magnetic drill machine

Specification Magnetic drilling

Twist drilling Ø: 31 mm
Tapping: M24
Reaming Ø: 31 mm
Twist drilling depth: 250 mm
Motor power: 1800 W
Speed: 60–460 rpm
Gearbox: 2-speed
Spindle: MT-3

Electronic speed control
Reverse / forward
Overload protection

Full specification

Magnetic drilling

HoleMatic 1 machine · 65 mm annular cutting

Twist drilling and annular cutting on one magnetic drill.

Fig. 07

HoleMatic

HoleMatic 31/65

Magnetic drill machine

1800 W
Power: 65 mm
Annular cutting: 31 mm
Twist drilling: 30 kg
Weight

View machine Request a quote

HoleMatic 31/65 — Magnetic drill machine

Specification Magnetic drilling

Annular cutting Ø: 65 mm
Twist drilling Ø: 31 mm
Reaming Ø: 31 mm
Cutter depth: 50/75 mm
Twist drilling depth: 250 mm
Motor power: 1800 W
Speed: 260/460 rpm
Gearbox: 2-speed

Overload protection

Full specification

Magnetic drilling

MegaCore 5 machines · 35–55 mm annular cutting

Compact magnetic drills made for annular cutters on a direct 19 mm Weldon shank.

Fig. 08

MegaCore

MegaCore 35

Magnetic drill machine

Annular Cutters: Unleash Precision

18 kg
Weight: 1300 W
Power: 35 mm
Annular cutting: 50/75 mm
Cutter depth

View machine Request a quote

Specification Magnetic drilling

Annular cutting Ø: 35 mm
Cutter depth: 50/75 mm
Motor power: 1300 W
Speed: 700 rpm
Gearbox: 1-speed
Spindle: 19 mm Weldon shank
Stroke: 150 mm
Magnetic force: 1000 kgf

Overload protection

Full specification

Fig. 09

MegaCore

MegaCore 40

Magnetic drill machine

Annular Cutters: Unleash Precision

10.5 kg
Weight: 1380 W
Power: 40 mm
Annular cutting: 50/75 mm
Cutter depth

View machine Request a quote

Specification Magnetic drilling

Annular cutting Ø: 40 mm
Cutter depth: 50/75 mm
Motor power: 1380 W
Speed: 50–500 rpm
Gearbox: 1-speed
Spindle: 19 mm Weldon shank
Stroke: 220 mm
Magnetic force: 1200 kgf

Electronic speed control
Stroke adjustment
Overload protection

Full specification

Fig. 10

MegaCore

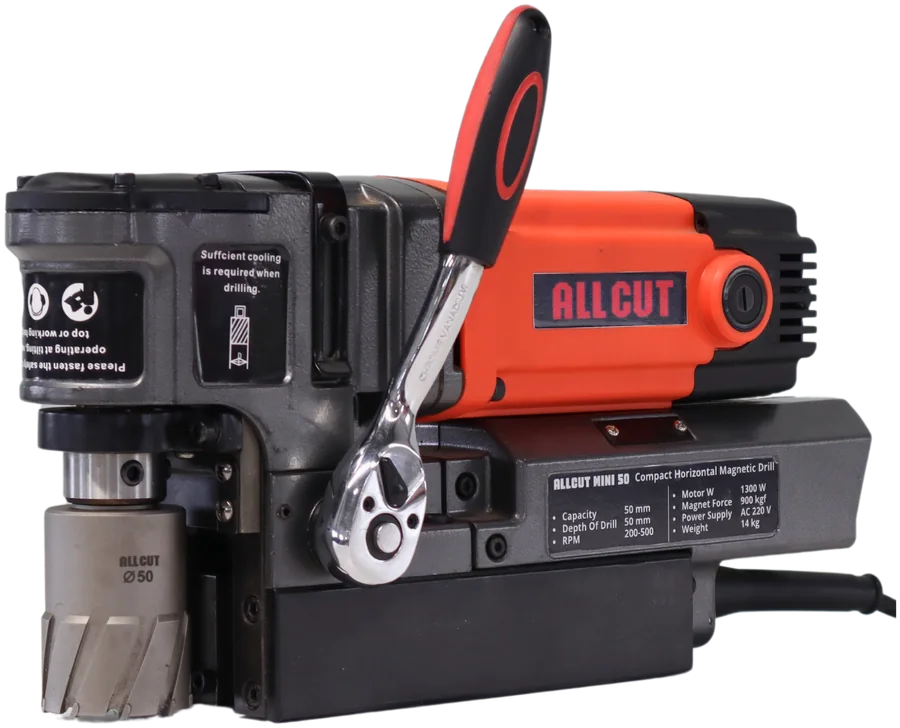

MegaCore 50 mini

Magnetic drill machine

Annular Cutters: Unleash Precision

14 kg
Weight: 1300 W
Power: 50 mm
Annular cutting: 50 mm
Cutter depth

View machine Request a quote

MegaCore 50 mini — Magnetic drill machine

Specification Magnetic drilling

Annular cutting Ø: 50 mm
Cutter depth: 50 mm
Motor power: 1300 W
Speed: 150–550 rpm
Gearbox: 1-speed
Spindle: 19 mm Weldon shank
Stroke: 50 mm
Magnetic force: 900 kgf

Electronic speed control
Overload protection

Full specification

Fig. 11

MegaCore

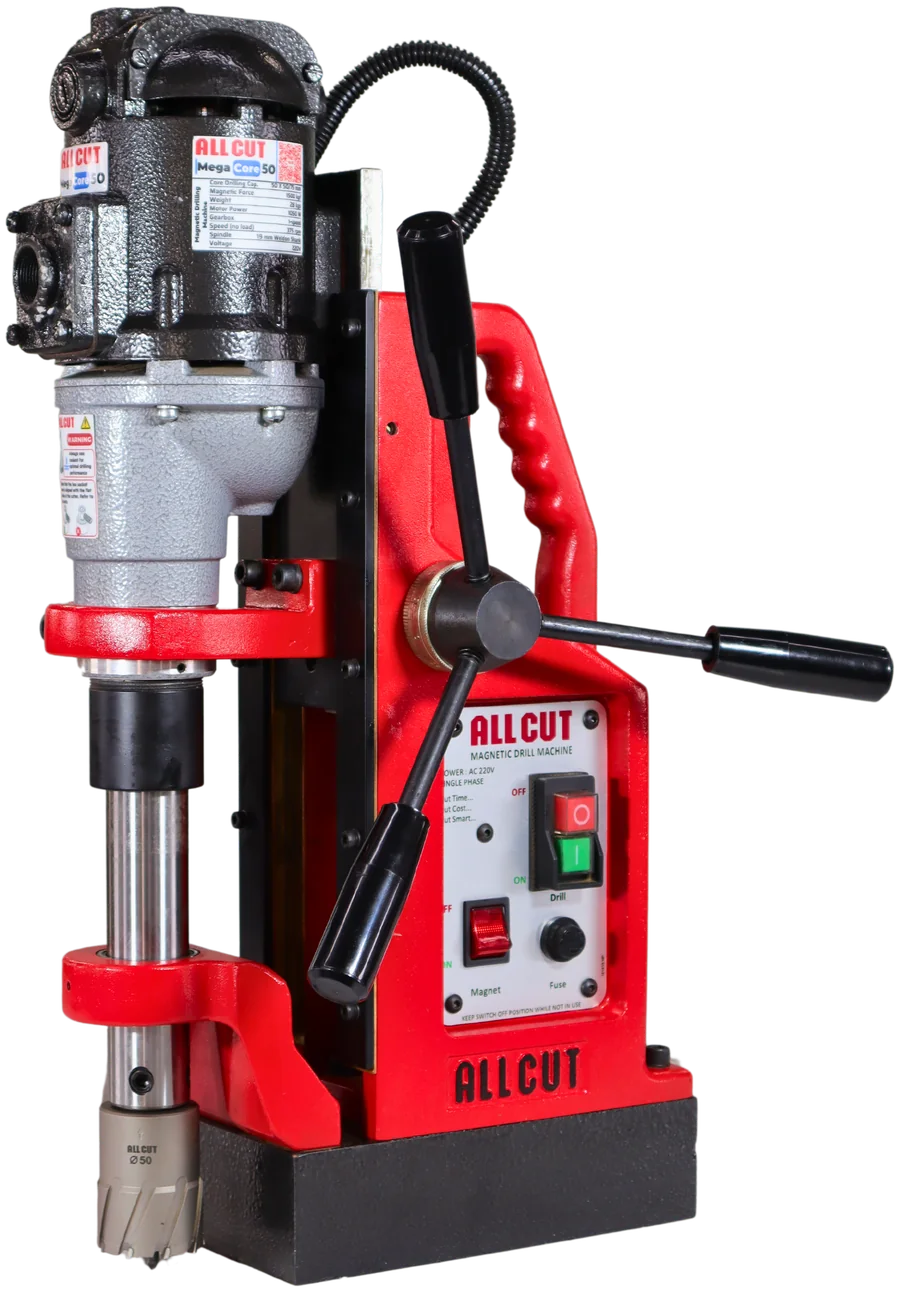

MegaCore 50

Magnetic drill machine

Annular Cutters: Unleash Precision

28 kg
Weight: 1050 W
Power: 50 mm
Annular cutting: 50/75 mm
Cutter depth

View machine Request a quote

Specification Magnetic drilling

Annular cutting Ø: 50 mm
Cutter depth: 50/75 mm
Motor power: 1050 W
Speed: 375 rpm
Gearbox: 1-speed
Spindle: 19 mm Weldon shank
Stroke: 150 mm
Magnetic force: 1500 kgf

Overload protection

Full specification

Fig. 12

MegaCore

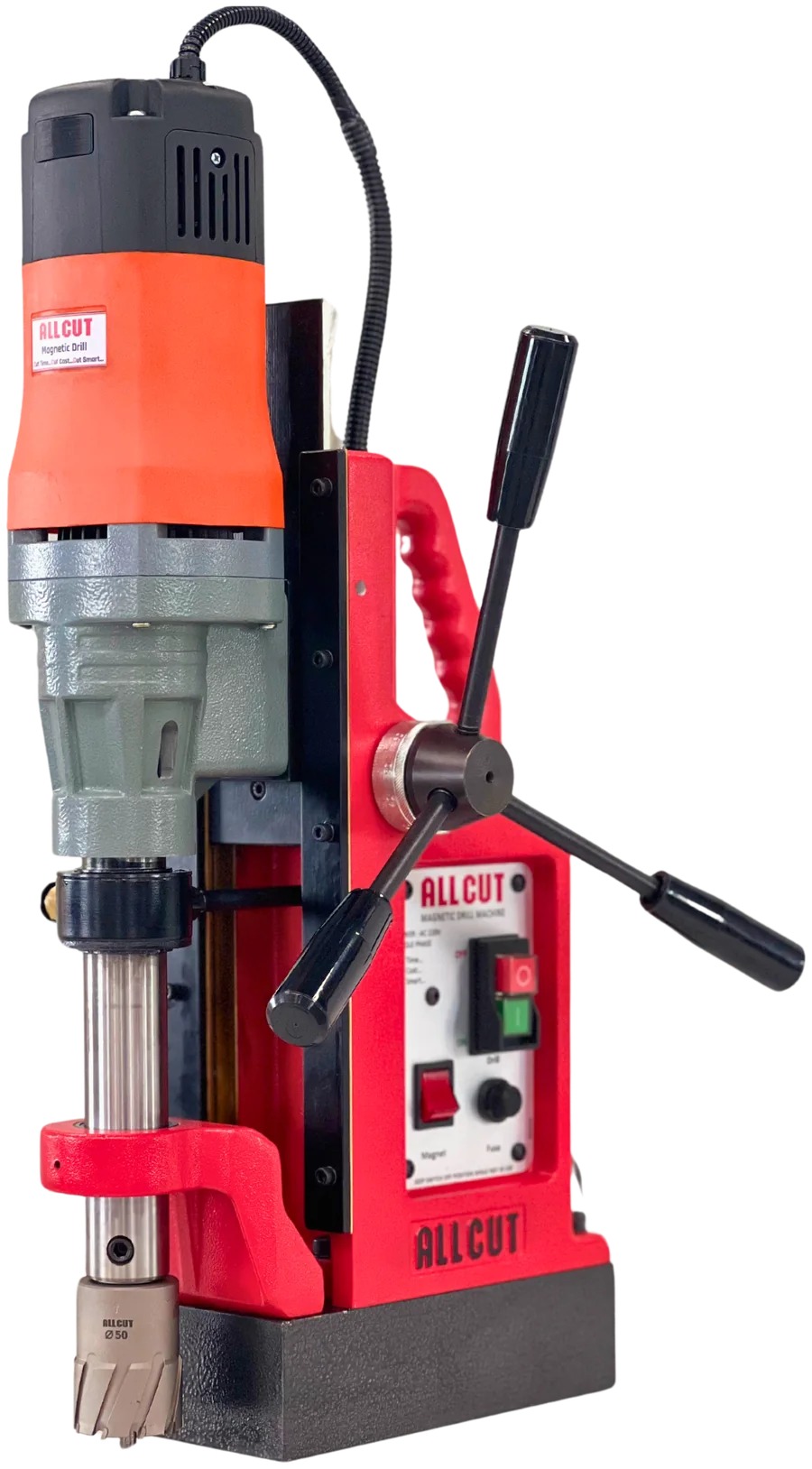

MegaCore 55

Magnetic drill machine

Annular Cutters: Unleash Precision

28 kg
Weight: 1500 W
Power: 55 mm
Annular cutting: 50/75 mm
Cutter depth

View machine Request a quote

Specification Magnetic drilling

Annular cutting Ø: 55 mm
Cutter depth: 50/75 mm
Motor power: 1500 W
Speed: 150–550 rpm
Gearbox: 1-speed
Spindle: 19 mm Weldon shank
Stroke: 150 mm
Magnetic force: 1500 kgf

Electronic speed control
Overload protection

Full specification

Magnetic drilling

cutXpert 5 machines · 40–120 mm annular cutting

Multi-purpose magnetic drills: twist drilling, annular cutting, reaming and tapping.

Fig. 13

cutXpert

cutXpert 23/40

Magnetic drill machine

Drill, Tap, Excel, Repeat!

23 mm
Twist drilling: 40 mm
Annular cutting: 23 mm
Reaming: M16
Tapping

View machine Request a quote

Specification Magnetic drilling

Annular cutting Ø: 40 mm
Twist drilling Ø: 23 mm
Tapping: M16
Reaming Ø: 23 mm
Cutter depth: 50/75 mm
Twist drilling depth: 150 mm
Motor power: 1500 W
Speed: 100–640 rpm

Electronic speed control
Reverse / forward
Head height adjustment
Stroke adjustment
Overload protection

Full specification

Fig. 14

cutXpert

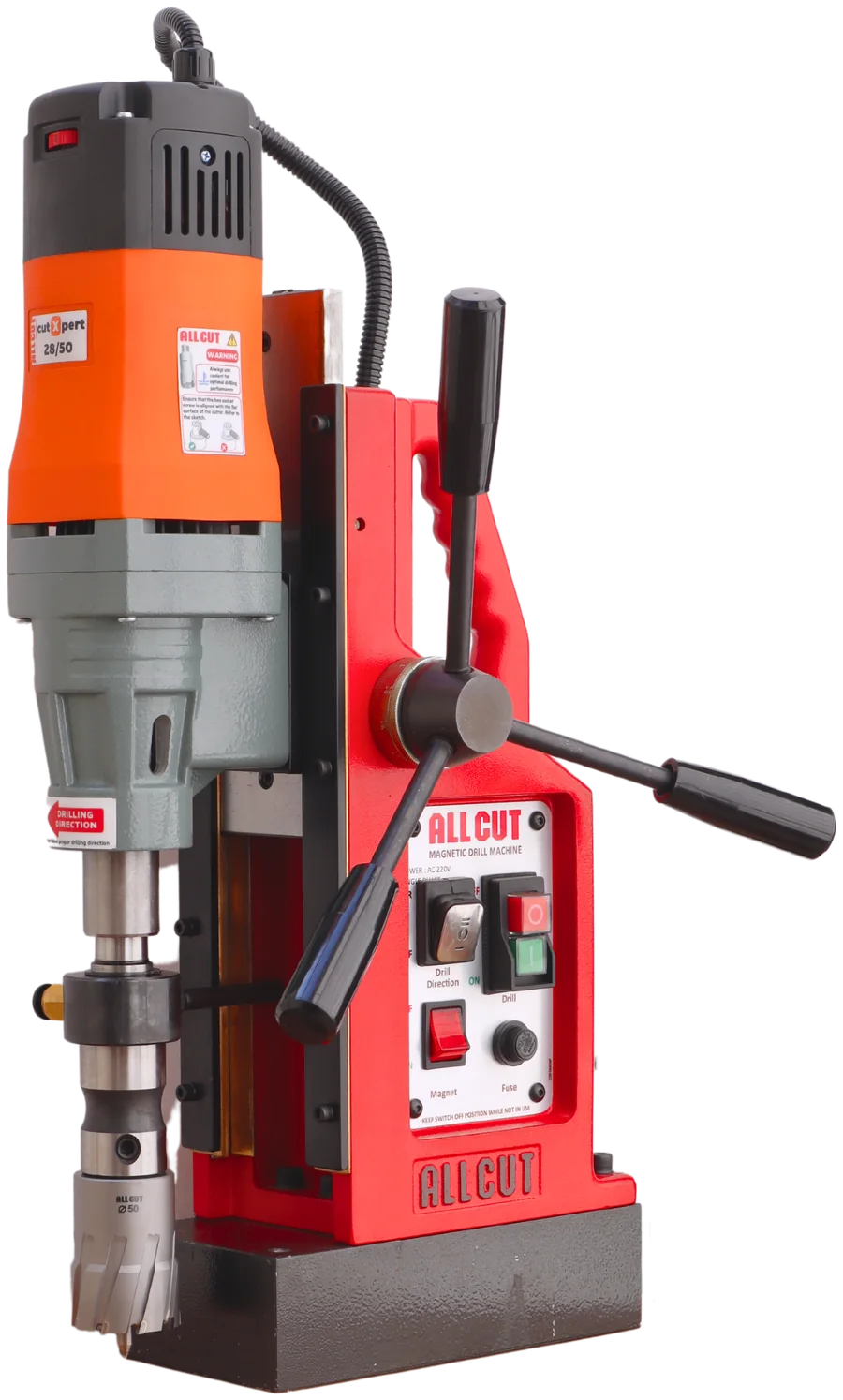

cutXpert 28/50 V

Magnetic drill machine

Drill, Tap, Excel, Repeat!

28 mm
Twist drilling: 50 mm
Annular cutting: 28 mm
Reaming: M20
Tapping

View machine Request a quote

cutXpert 28/50 V — Magnetic drill machine

Specification Magnetic drilling

Annular cutting Ø: 50 mm
Twist drilling Ø: 28 mm
Tapping: M20
Reaming Ø: 28 mm
Cutter depth: 50/75 mm
Twist drilling depth: 200 mm
Motor power: 1500 W
Speed: 150–550 rpm

Electronic speed control
Reverse / forward
Overload protection

Full specification

Fig. 15

cutXpert

cutXpert 31/85

Magnetic drill machine

Drill, Tap, Excel, Repeat!

31 mm
Twist drilling: 85 mm
Annular cutting: 31 mm
Reaming: M24
Tapping

View machine Request a quote

Specification Magnetic drilling

Annular cutting Ø: 85 mm
Twist drilling Ø: 31 mm
Tapping: M24
Reaming Ø: 31 mm
Cutter depth: 50/75/100 mm
Twist drilling depth: 250 mm
Motor power: 1800 W
Speed: 60–430 rpm

Electronic speed control
Reverse / forward
Overload protection

Full specification

Fig. 16

cutXpert

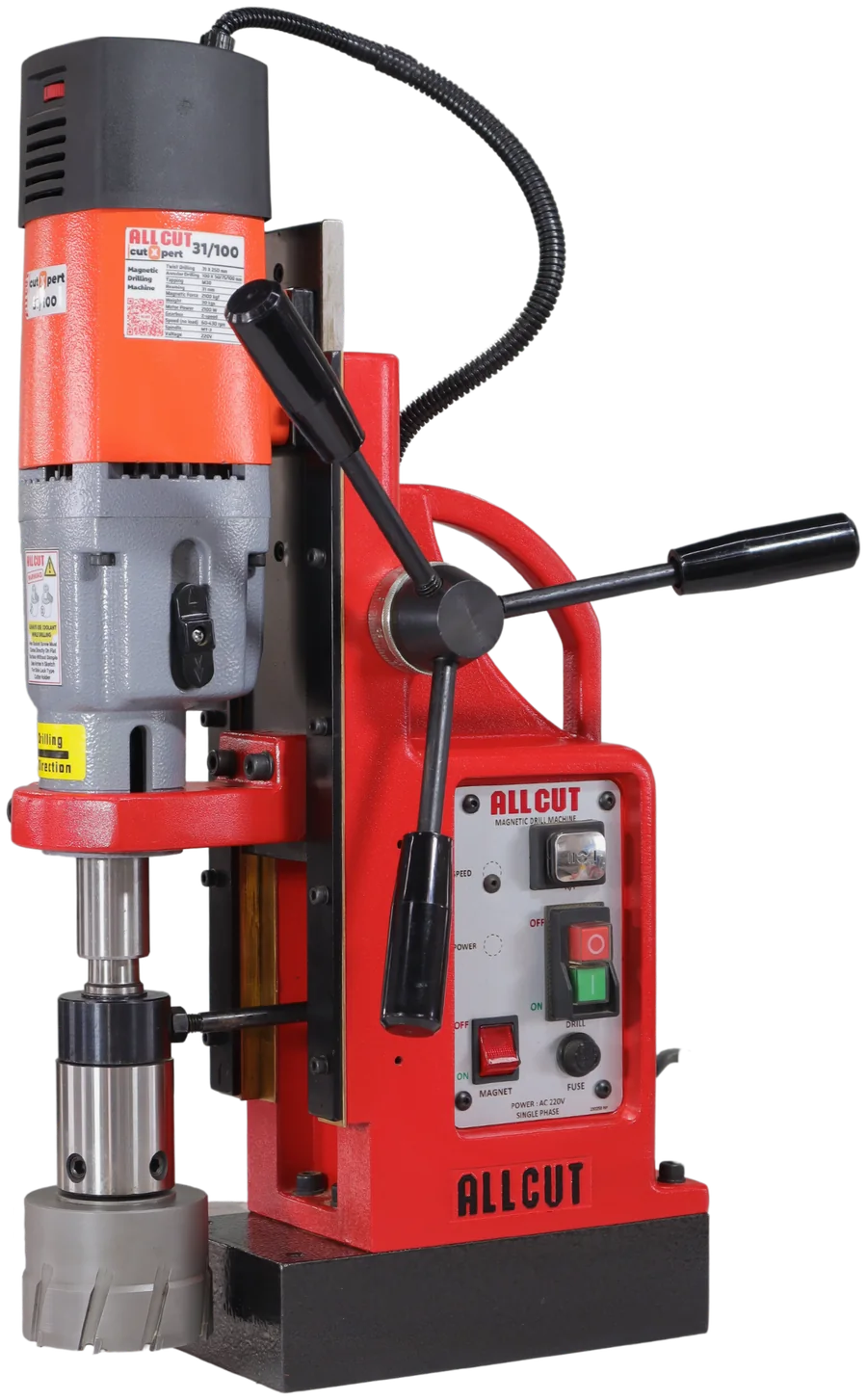

cutXpert 31/100

Magnetic drill machine

Drill, Tap, Excel, Repeat!

31 mm
Twist drilling: 100 mm
Annular cutting: 31 mm
Reaming: M30
Tapping

View machine Request a quote

cutXpert 31/100 — Magnetic drill machine

Specification Magnetic drilling

Annular cutting Ø: 100 mm
Twist drilling Ø: 31 mm
Tapping: M30
Reaming Ø: 31 mm
Cutter depth: 50/75/100 mm
Twist drilling depth: 250 mm
Motor power: 2000 W
Speed: 60–430 rpm

Electronic speed control
Reverse / forward
Torque control
Fine feed (optional)
Overload protection

Full specification

Fig. 17

cutXpert

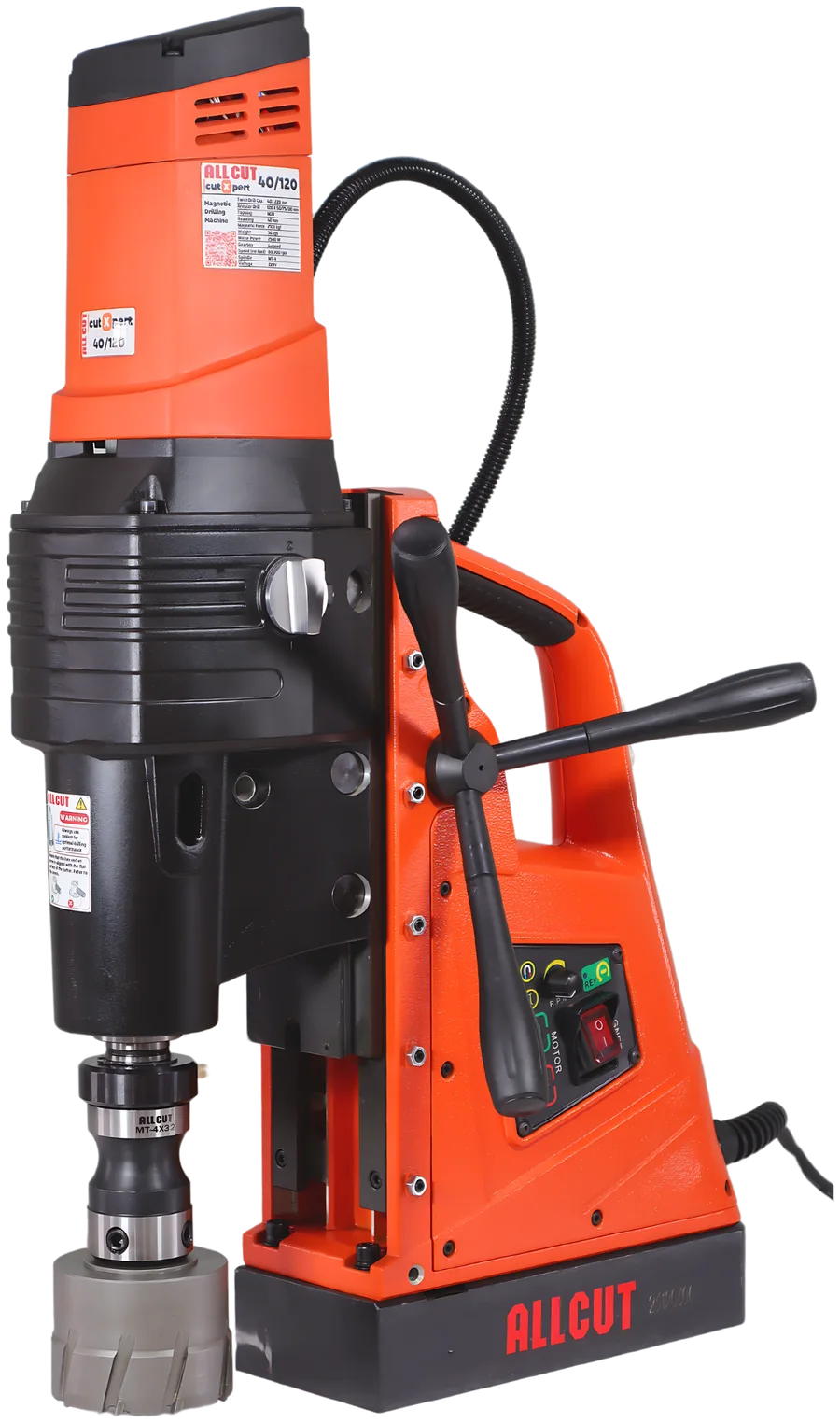

cutXpert 40/120

Magnetic drill machine

Drill, Tap, Excel, Repeat!

40 mm
Twist drilling: 120 mm
Annular cutting: 40 mm
Reaming: M33
Tapping

View machine Request a quote

cutXpert 40/120 — Magnetic drill machine

Specification Magnetic drilling

Annular cutting Ø: 120 mm
Twist drilling Ø: 40 mm
Tapping: M33
Reaming Ø: 40 mm
Cutter depth: 50/75/100 mm
Twist drilling depth: 220 mm
Motor power: 2500 W
Speed: 30–300 rpm

Electronic speed control
Reverse / forward
Torque control
Head height adjustment
Stroke adjustment
Overload protection

Full specification

Cutting tools

Annular Cutters 3 machines · 12–120 mm cutter Ø

HSS and TCT annular cutters and TCT holesaws for magnetic drills.

Fig. 18

Annular Cutters

HSS Annular Cutters

Annular cutter

12–100 mm
Diameter: 50/75/100 mm
Depth: High-speed steel
Material: Regrindable
Tips

View machine Request a quote

Specification Cutting tools

Diameter range: 12–100 mm
Cutting depth: 50/75/100 mm
Feed rate: 0.05–0.4 mm/rev
Material: High-speed steel
Tips: Regrindable
Shank: Weldon shank

Full specification

Fig. 19

Annular Cutters

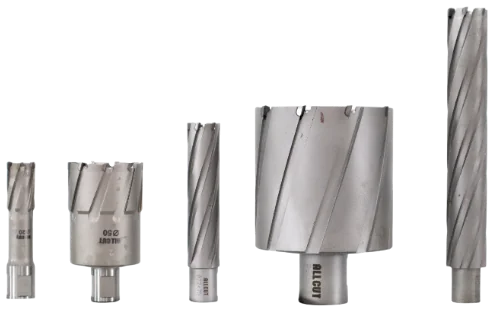

TCT Annular Cutters

Annular cutter

14–120 mm
Diameter: 50/75/100 mm
Depth: Steel body
Material: Tungsten carbide
Tips

View machine Request a quote

Specification Cutting tools

Diameter range: 14–120 mm
Cutting depth: 50/75/100 mm
Feed rate: 0.02–0.4 mm/rev
Material: Steel body
Tips: Tungsten carbide
Shank: Weldon shank

Full specification

Fig. 20

Annular Cutters

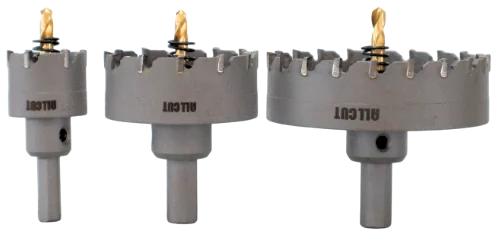

TCT Holesaw Cutters

Annular cutter

12–100 mm
Diameter: 10 mm
Depth: Steel body
Material: Tungsten carbide
Tips

View machine Request a quote

Specification Cutting tools

Diameter range: 12–100 mm
Cutting depth: 10 mm
Feed rate: 0.01–0.05 mm/rev
Material: Steel body
Tips: Tungsten carbide
Shank: Tri-shank

Full specification

Scrap recycling

StripMatic 9 machines · 0.5–125 mm wire

Motorised wire stripping machines for copper and aluminium cable recovery.

Fig. 21

StripMatic

StripMatic WS-23

Wire stripping machine

60 W
Power: 0.5–23
Wire size: 7
Blades: 16 kg
Weight

View machine Request a quote

StripMatic WS-23 — Wire stripping machine

Specification Scrap recycling

Wire size: 0.5–23
Output: 50–250 kg
Motor power: 60 W
Feed: Motorised feed
Blades: 7
Weight: 16 kg
Power supply: 220 V AC, 1-phase

Full specification

Fig. 22

StripMatic

StripMatic WS-30

Wire stripping machine

0.5 HP
Power: 0.5–30 mm
Wire size: 10
Blades: 48 kg
Weight

View machine Request a quote

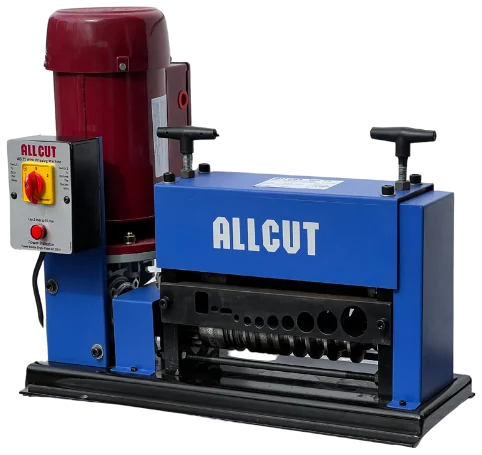

StripMatic WS-30 — Wire stripping machine

Specification Scrap recycling

Wire size: 0.5–30 mm
Output: 50–450 kg
Motor power: 0.5 HP
Feed: Motorised feed
Blades: 10
Weight: 48 kg
Power supply: 220 V AC, 1-phase

Full specification

Fig. 23

StripMatic

StripMatic WS-35

Wire stripping machine

1 HP
Power: 0.5–35 mm
Wire size: 50–600 kg
Output: 10
Blades

View machine Request a quote

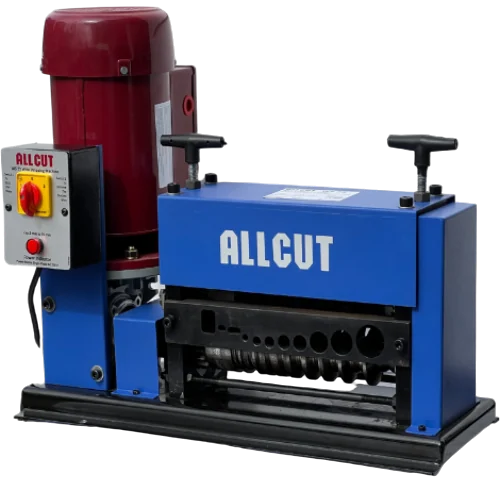

StripMatic WS-35 — Wire stripping machine

Specification Scrap recycling

Wire size: 0.5–35 mm
Output: 50–600 kg
Motor power: 1 HP
Feed: Motorised feed
Blades: 10
Weight: 50 kg
Power supply: 220 V AC, 1-phase

Full specification

Fig. 24

StripMatic

StripMatic WSF-40

Wire stripping machine

2 HP
Power: 1–40 mm
Wire size: 15
Blades: 70 kg
Weight

View machine Request a quote

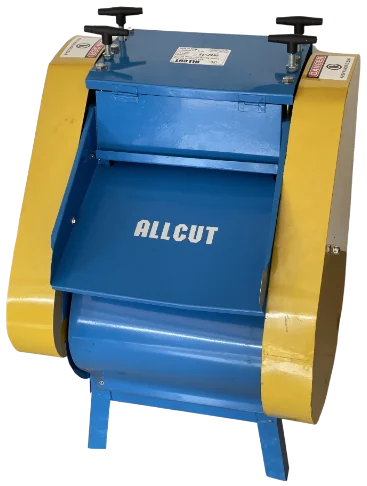

StripMatic WSF-40 — Wire stripping machine

Specification Scrap recycling

Wire size: 1–40 mm
Output: 400–1000 kg
Motor power: 2 HP
Feed: Motorised feed
Blades: 15
Weight: 70 kg
Power supply: 220 V AC, 1-phase

Full specification

Fig. 25

StripMatic

StripMatic WS-1818

Wire stripping machine

2 HP
Power: 1–18 mm
Wire size: 12
Blades: 85 kg
Weight

View machine Request a quote

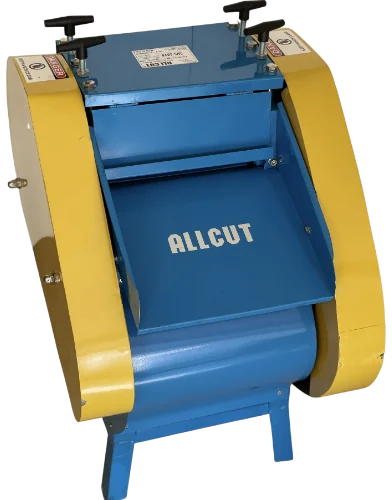

StripMatic WS-1818 — Wire stripping machine

Specification Scrap recycling

Wire size: 1–18 mm
Output: 200–1000 kg
Motor power: 2 HP
Feed: Motorised feed
Blades: 12
Weight: 85 kg
Power supply: 220 V AC, 1-phase

Full specification

Fig. 26

StripMatic

StripMatic WS-60 Pro

Wire stripping machine

4 HP
Power: 1–60 mm
Wire size: 18
Blades: 110 kg
Weight

View machine Request a quote

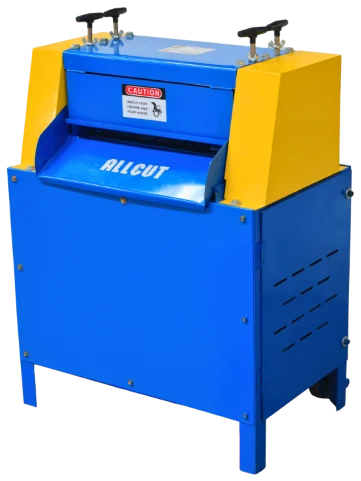

StripMatic WS-60 Pro — Wire stripping machine

Specification Scrap recycling

Wire size: 1–60 mm
Output: 600–2800 kg
Motor power: 4 HP
Feed: Motorised feed
Blades: 18
Weight: 110 kg
Power supply: 220 V AC, 1-phase

Full specification

Fig. 27

StripMatic

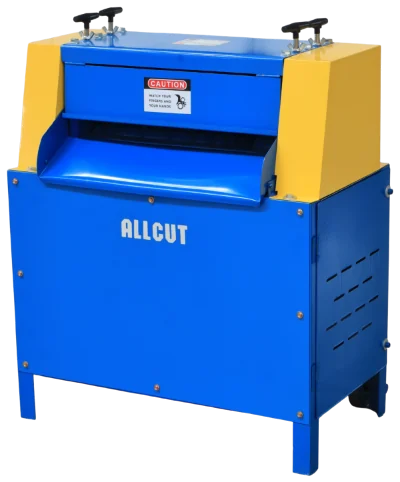

StripMatic WS-70

Wire stripping machine

4 HP
Power: 1–70 mm
Wire size: 21
Blades: 135 kg
Weight

View machine Request a quote

StripMatic WS-70 — Wire stripping machine

Specification Scrap recycling

Wire size: 1–70 mm
Output: 600–3200 kg
Motor power: 4 HP
Feed: Motorised feed
Blades: 21
Weight: 135 kg
Power supply: 220 V AC, 1-phase

Full specification

Fig. 28

StripMatic

StripMatic WS-120

Wire stripping machine

5 HP
Power: 10–120 mm
Wire size: 2
Blades: 210 kg
Weight

View machine Request a quote

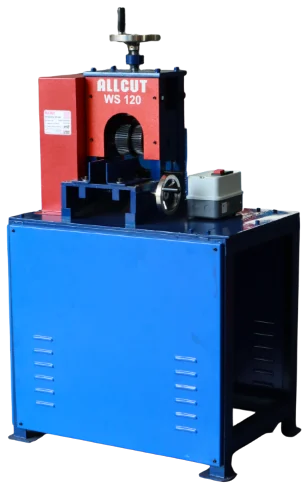

StripMatic WS-120 — Wire stripping machine

Specification Scrap recycling

Wire size: 10–120 mm
Output: 1000–3000 kg
Motor power: 5 HP
Feed: Motorised feed
Blades: 2
Weight: 210 kg
Power supply: 440 V AC, 3-phase

Full specification

Fig. 29

StripMatic

StripMatic WS-120 Pro

Wire stripping machine

6 (5+1) HP
Power: 0.5–125 mm
Wire size: 12
Blades: 275 kg
Weight

View machine Request a quote

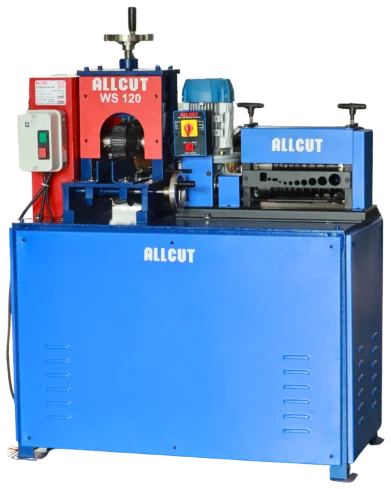

StripMatic WS-120 Pro — Wire stripping machine

Specification Scrap recycling

Wire size: 0.5–125 mm
Output: 100–3300 kg
Motor power: 6 (5+1) HP
Feed: Motorised feed
Blades: 12
Weight: 275 kg
Power supply: 440 V AC, 3-phase

Full specification

Beveling

BeveleX 3 machines · 32–189 mm pipe OD

Plate and pipe beveling machines for weld preparation.

Fig. 30

BeveleX

BeveleX AB 24

Plate beveling machine

Sharp Bevels, Smooth Results

19.3 kg
Weight: 110 W
Power: 3000 rpm
Speed

View machine Request a quote

Specification Beveling

Bevel capacity: 15°: 12 mm30°: 14 mm37.5°: 15.6 mm45°: 16 mm60°: 12.7 mm
Motor power: 110 W
Speed: 3000 rpm
Feed: Manual
Weight: 19.3 kg
Power supply: 220 V

Full specification

Fig. 31

BeveleX

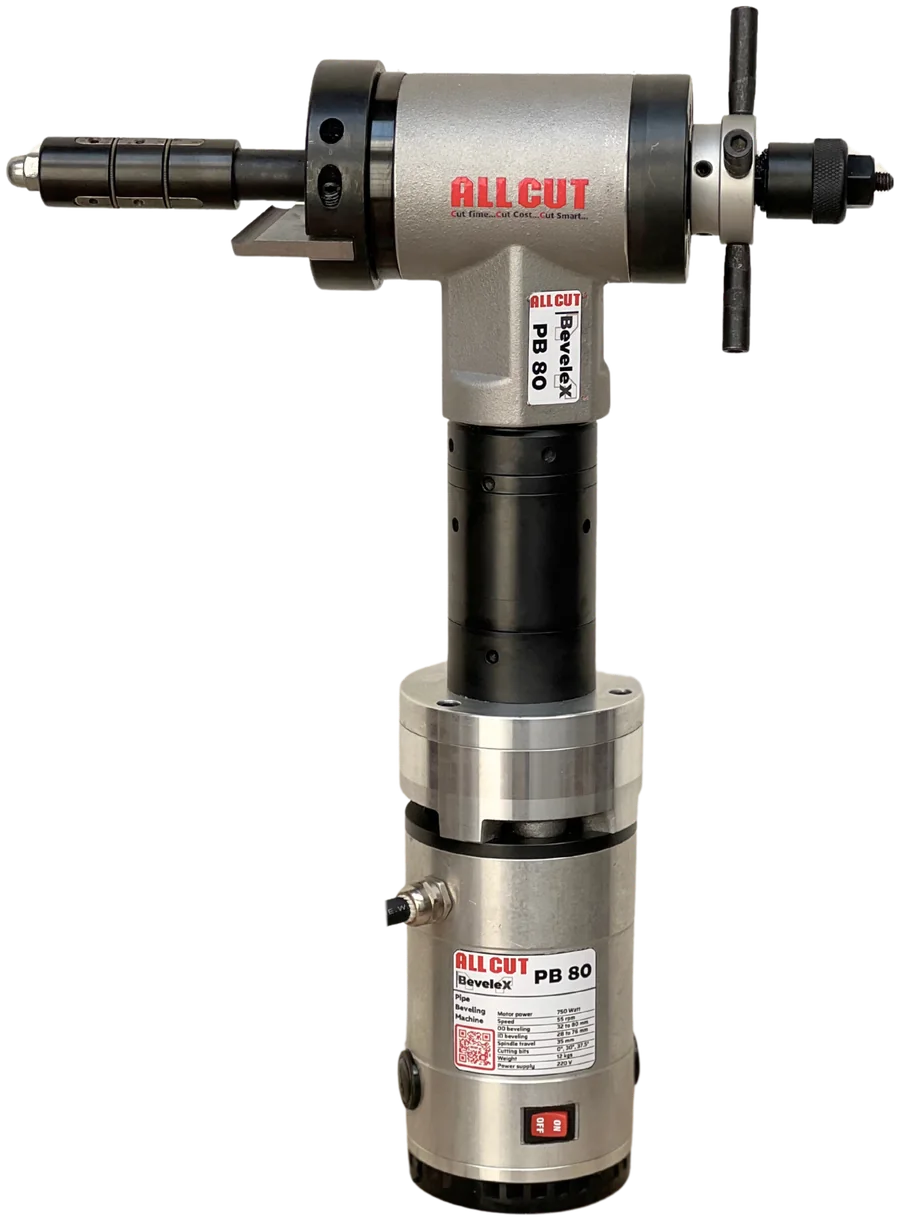

BeveleX PB 80

Pipe beveling machine

Sharp Bevels, Smooth Results

12 kg
Weight: 750 W
Power: 55 rpm
Speed

View machine Request a quote

Specification Beveling

Pipe OD: 32–80 mm
Pipe ID: 28–76 mm
Motor power: 750 W
Speed: 55 rpm
Weight: 12 kg
Power supply: 220 V

Full specification

Fig. 32

BeveleX

BeveleX PB 160

Pipe beveling machine

Sharp Bevels, Smooth Results

23 kg
Weight: 1000 W
Power: 35 rpm
Speed

View machine Request a quote

Specification Beveling

Pipe OD: 72–189 mm
Pipe ID: 65–158 mm
Motor power: 1000 W
Speed: 35 rpm
Weight: 23 kg
Power supply: 220 V

Full specification

Line boring

ProBore 1 machine · 60–200 mm bore

Portable line boring for restoring worn bores on site.

Fig. 33

ProBore

ProBore LB 01

Line boring machine

Boring Excellence, Anywhere Anytime

60–200 mm
Boring Ø: 42 kg
Weight: 1800 W
Power: 60–460 rpm
Speed

View machine Request a quote

Specification Line boring

Boring Ø range: 60–200 mm
Motor power: 1800 W
Spindle speed: 60–460 rpm
Feed: Automatic
Feed rate: 0.5–11 mm/sec
Weight: 42 kg
Power supply: 220 V AC

Full specification

Index of machines

Index

Index of machines

ALLCUT machines by range, with primary capacity, motor power, weight and data sheet
No.	Model	Primary capacity	Motor power	Weight	Data sheet
TwisTech Magnetic drilling · 6 machines · 16–31 mm twist drilling
01	TwisTech 16	16 mmTwist drilling Ø	1380 W	10.5 kg	PDF · 512 KB: Data sheet, TwisTech 16
02	TwisTech 23	23 mmTwist drilling Ø	1500 W	18 kg	PDF · 996 KB: Data sheet, TwisTech 23
03	TwisTech 28	28 mmTwist drilling Ø	1500 W	28 kg	PDF · 904 KB: Data sheet, TwisTech 28
04	TwisTech 28 V	28 mmTwist drilling Ø	1500 W	28 kg	PDF · 900 KB: Data sheet, TwisTech 28 V
05	TwisTech 31/2	31 mmTwist drilling Ø	1800 W	30 kg	PDF · 967 KB: Data sheet, TwisTech 31/2
06	TwisTech 31/2 V	31 mmTwist drilling Ø	1800 W	31 kg	PDF · 925 KB: Data sheet, TwisTech 31/2 V
HoleMatic Magnetic drilling · 1 machine · 65 mm annular cutting
07	HoleMatic 31/65	65 mmAnnular cutting Ø	1800 W	30 kg	PDF · 775 KB: Data sheet, HoleMatic 31/65
MegaCore Magnetic drilling · 5 machines · 35–55 mm annular cutting
08	MegaCore 35	35 mmAnnular cutting Ø	1300 W	18 kg	PDF · 1.0 MB: Data sheet, MegaCore 35
09	MegaCore 40	40 mmAnnular cutting Ø	1380 W	10.5 kg	PDF · 1.1 MB: Data sheet, MegaCore 40
10	MegaCore 50 mini	50 mmAnnular cutting Ø	1300 W	14 kg	PDF · 663 KB: Data sheet, MegaCore 50 mini
11	MegaCore 50	50 mmAnnular cutting Ø	1050 W	28 kg	PDF · 1.0 MB: Data sheet, MegaCore 50
12	MegaCore 55	55 mmAnnular cutting Ø	1500 W	28 kg	PDF · 960 KB: Data sheet, MegaCore 55
cutXpert Magnetic drilling · 5 machines · 40–120 mm annular cutting
13	cutXpert 23/40	40 mmAnnular cutting Ø	1500 W	18 kg	PDF · 1.1 MB: Data sheet, cutXpert 23/40
14	cutXpert 28/50 V	50 mmAnnular cutting Ø	1500 W	28 kg	PDF · 695 KB: Data sheet, cutXpert 28/50 V
15	cutXpert 31/85	85 mmAnnular cutting Ø	1800 W	30 kg	PDF · 971 KB: Data sheet, cutXpert 31/85
16	cutXpert 31/100	100 mmAnnular cutting Ø	2000 W	30 kg	PDF · 1.1 MB: Data sheet, cutXpert 31/100
17	cutXpert 40/120	120 mmAnnular cutting Ø	2500 W	36 kg	PDF · 801 KB: Data sheet, cutXpert 40/120
Annular Cutters Cutting tools · 3 machines · 12–120 mm cutter Ø
18	HSS Annular Cutters	12–100 mmDiameter range	Not listed	Not listed	No data sheet
19	TCT Annular Cutters	14–120 mmDiameter range	Not listed	Not listed	No data sheet
20	TCT Holesaw Cutters	12–100 mmDiameter range	Not listed	Not listed	No data sheet
StripMatic Scrap recycling · 9 machines · 0.5–125 mm wire
21	StripMatic WS-23	0.5–23Wire size	60 W	16 kg	No data sheet
22	StripMatic WS-30	0.5–30 mmWire size	0.5 HP	48 kg	No data sheet
23	StripMatic WS-35	0.5–35 mmWire size	1 HP	50 kg	No data sheet
24	StripMatic WSF-40	1–40 mmWire size	2 HP	70 kg	No data sheet
25	StripMatic WS-1818	1–18 mmWire size	2 HP	85 kg	No data sheet
26	StripMatic WS-60 Pro	1–60 mmWire size	4 HP	110 kg	No data sheet
27	StripMatic WS-70	1–70 mmWire size	4 HP	135 kg	No data sheet
28	StripMatic WS-120	10–120 mmWire size	5 HP	210 kg	No data sheet
29	StripMatic WS-120 Pro	0.5–125 mmWire size	6 (5+1) HP	275 kg	No data sheet
BeveleX Beveling · 3 machines · 32–189 mm pipe OD
30	BeveleX AB 24	15°: 12 mm · 30°: 14 mm · 37.5°: 15.6 mm · 45°: 16 mm · 60°: 12.7 mmBevel capacity	110 W	19.3 kg	No data sheet
31	BeveleX PB 80	32–80 mmPipe OD	750 W	12 kg	No data sheet
32	BeveleX PB 160	72–189 mmPipe OD	1000 W	23 kg	No data sheet
ProBore Line boring · 1 machine · 60–200 mm bore
33	ProBore LB 01	60–200 mmBoring Ø range	1800 W	42 kg	No data sheet

Enquiries

Talk to the people who build the machines.

Tell us the job — material, hole size, depth — and we will recommend the right machine and tooling. Prices on request.

Request a quote WhatsApp

Call sales+91 7600 252525 Emailsales@allcut.in Catalogue · PDF · 9.3 MBDownload DealersBecome a dealer
