TwisTech 31/2

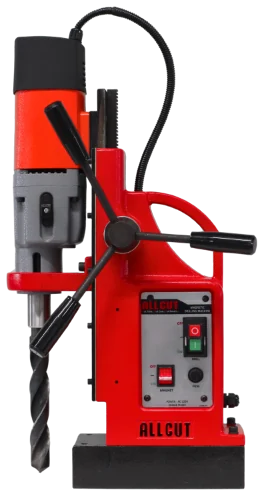

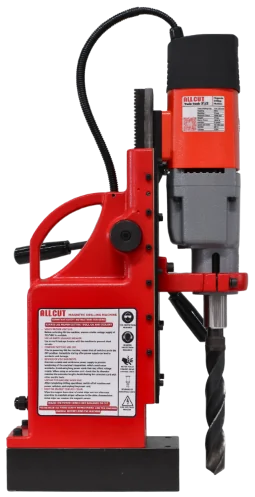

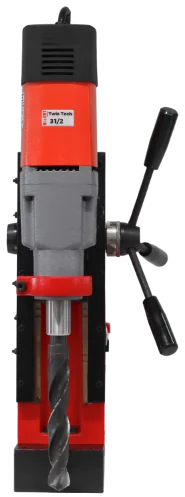

Magnetic drill machine
- 1800 W
- Power
- 31 mm
- Twist drilling
- 300 mm
- Stroke
- 30 kg
- Weight
- Overload protection
Call sales +91 7600 252525Prices on request
Data sheetSpecification
Technical data
TwisTech 31/2 · Magnetic drill machine
Capacity
- Twist drilling Ø
- 31 mm
- Twist drilling depth
- 250 mm
- Reaming Ø
- 31 mm
Drive
- Motor power
- 1800 W
- Power supply
- 220 V
- Gearbox
- 2-speed
- Speed
- 260/460 rpm
- Gear 1
- 260 rpm
- Gear 2
- 460 rpm
Tooling
- Spindle
- MT-3
Motion
- Stroke
- 300 mm
Magnet & body
- Magnet L × W × H
- 245 × 125 × 60 mm
- Weight
- 30 kg
Overview
About the TwisTech range
The ALLCUT mag drills with Twist Drill is a winning combination that guarantees drilling efficiency and precision. Paired with the versatile Twist Drill, this unstoppable duo effortlessly cuts through various materials, with remarkable ease. Experience the perfect fusion of strength and finesse as the ALLCUT Mag Drill with Twist Drill takes your drilling projects to new heights, delivering exceptional results every time.
Accessories
Fits the TwisTech 31/2
-
Drill accessory
Extension tube
Morse taper extension tube.
-
Drill accessory
Drill sleeve
Morse taper reducer sleeves.
Compare
Compare the TwisTech range
Magnetic drills built around twist drilling, reaming and tapping.
Open in the compare tool
| 6 models |
TwisTech 16
|
TwisTech 23
|
TwisTech 28
|
TwisTech 28 V
|
TwisTech 31/2
This machine
|
TwisTech 31/2 V
|
|---|---|---|---|---|---|---|
| Capacity | ||||||
| Twist drilling Ø | 16 mm | 23 mm | 28 mm | 28 mm | 31 mm | 31 mm |
| Twist drilling depth | 150 mm | 200 mm | 200 mm | 200 mm | 250 mm | 250 mm |
| Tapping | M10 | M16 | M20 | M24 | ||
| Reaming Ø | 23 mm | 28 mm | 28 mm | 31 mm | 31 mm | |
| Drive | ||||||
| Motor power | 1380 W | 1500 W | 1500 W | 1500 W | 1800 W | 1800 W |
| Speed | 100–750 rpm | 100–640 rpm | 550 rpm | 100–640 rpm | 260/460 rpm | 60–460 rpm |
| Power supply | 220 V | 220 V | 220 V | 220 V | 220 V | 220 V |
| Gearbox | 1-speed | 1-speed | 1-speed | 2-speed | 2-speed | |
| Gear 1 | 260 rpm | |||||
| Gear 2 | 460 rpm | |||||
| Tooling | ||||||
| Spindle | Direct drill chuck | MT-2 | MT-3 | MT-3 | MT-3 | MT-3 |
| Motion | ||||||
| Stroke | 200 mm | 280 mm | 250 mm | 250 mm | 300 mm | 300 mm |
| Magnet & body | ||||||
| Magnet L × W × H | 175 × 75 × 35 mm | 210 × 105 × 50 mm | 235 × 120 × 65 mm | 230 × 115 × 60 mm | 245 × 125 × 60 mm | 240 × 125 × 60 mm |
| Magnetic force | 700 kgf | 1300 kgf | 1500 kgf | 2000 kgf | ||
| Weight | 10.5 kg | 18 kg | 28 kg | 28 kg | 30 kg | 31 kg |
| Size L × W × H | 290 × 165 × 380 mm | 310 × 110 × 410 mm | 310 × 110 × 480 mm | 335 × 190 × 480 mm | ||
