StripMatic 08 / 09

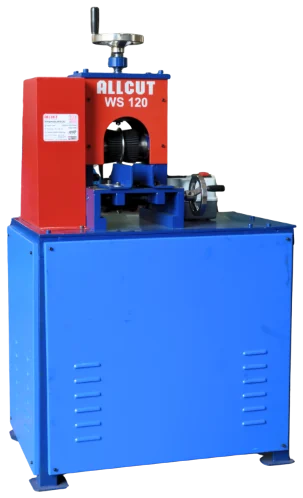

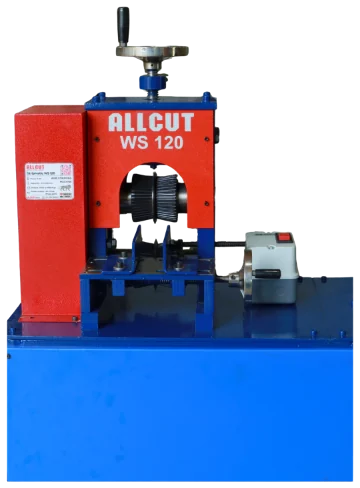

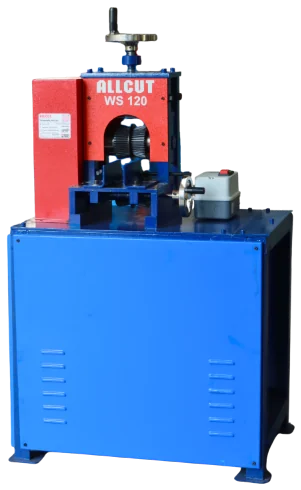

StripMatic WS-120
Wire stripping machine
- 5 HP
- Power
- 10–120 mm
- Wire size
- 2
- Blades
- 210 kg
- Weight
Call sales +91 7600 252525Prices on request
ALLCUT catalogueSpecification
Technical data
StripMatic WS-120 · Wire stripping machine
Capacity
- Wire size
- 10–120 mm
- Output
- 1000–3000 kg
- Cutting channels
- Adjustable
Drive
- Motor power
- 5 HP
- Power supply
- 440 V AC, 3-phase
- Drive
- Full chain drive
Tooling
- Blades
- 2
- Shafts
- 2
- Blade material
- HSS M2
Motion
- Cut depth adjustment
- Yes
- Feed
- Motorised feed
Body
- Weight
- 210 kg
Overview
About the StripMatic range
The ALLCUT wire stripping machine is a cutting-edge tool designed to streamline the process of removing insulation from electrical wires. This machine offers advanced features and capabilities to enhance efficiency and accuracy. The ALLCUT model incorporates a motorized feed system, allowing for continuous and automated wire feeding. With adjustable setting, it can accommodate a wide range of wires, making it suitable for various applications. The machine utilizes a specialized stripping method, such as blade or cutter-based, ensuring precise and consistent stripping results. It is equipped with safety features to prevent injury or damage during operation. The ALLCUT wire stripping machine is a reliable and efficient solution for industries, electrical contractors, and hobbyists seeking to optimize their wire preparation processes.
Compare
Compare the StripMatic range
Motorised wire stripping machines for copper and aluminium cable recovery.
Open in the compare tool
| 9 models |
StripMatic WS-23
|
StripMatic WS-30
|
StripMatic WS-35
|
StripMatic WSF-40
|
StripMatic WS-1818
|
StripMatic WS-60 Pro
|
StripMatic WS-70
|
StripMatic WS-120
This machine
|
StripMatic WS-120 Pro
|
|---|---|---|---|---|---|---|---|---|---|
| Capacity | |||||||||
| Wire size | 0.5–23 | 0.5–30 mm | 0.5–35 mm | 1–40 mm | 1–18 mm | 1–60 mm | 1–70 mm | 10–120 mm | 0.5–125 mm |
| Output | 50–250 kg | 50–450 kg | 50–600 kg | 400–1000 kg | 200–1000 kg | 600–2800 kg | 600–3200 kg | 1000–3000 kg | 100–3300 kg |
| Cutting channels | 7 | 11 | 11 | 12 | 14 | 12 | 13 | Adjustable | 12 |
| Drive | |||||||||
| Motor power | 60 W | 0.5 HP | 1 HP | 2 HP | 2 HP | 4 HP | 4 HP | 5 HP | 6 (5+1) HP |
| Power supply | 220 V AC, 1-phase | 220 V AC, 1-phase | 220 V AC, 1-phase | 220 V AC, 1-phase | 220 V AC, 1-phase | 220 V AC, 1-phase | 220 V AC, 1-phase | 440 V AC, 3-phase | 440 V AC, 3-phase |
| Drive | Gear driven | Gear driven | Gear driven | Chain driven | Chain driven | Full chain drive | Full chain drive | Full chain drive | Chain drive |
| Tooling | |||||||||
| Blades | 7 | 10 | 10 | 15 | 12 | 18 | 21 | 2 | 12 |
| Shafts | 2 | 2 | 2 | 4 | 4 | 4 | 4 | 2 | 4 |
| Blade material | HSS M2 | HSS M2 | HSS M2 | HSS M2 | HSS M2 | HSS M2 | HSS M2 | HSS M2 | HSS M2 |
| Motion | |||||||||
| Cut depth adjustment | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Feed | Motorised feed | Motorised feed | Motorised feed | Motorised feed | Motorised feed | Motorised feed | Motorised feed | Motorised feed | Motorised feed |
| Body | |||||||||
| Weight | 16 kg | 48 kg | 50 kg | 70 kg | 85 kg | 110 kg | 135 kg | 210 kg | 275 kg |
| Size L × W × H | 490 × 170 × 325 mm | 600 × 350 × 400 | 600 × 350 × 480 | 570 × 630 × 850 mm | 540 × 600 × 850 mm | 610 × 370 × 4470 mm | |||
