BeveleX 01 / 03
BeveleX AB 24

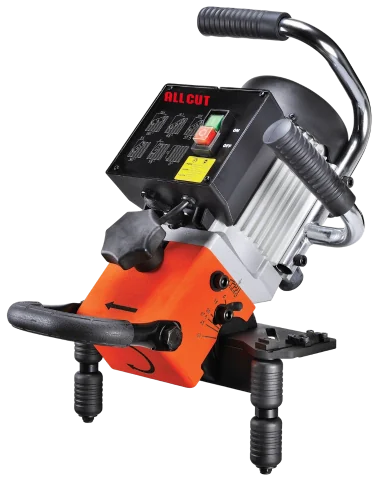

Plate beveling machine
“Sharp Bevels, Smooth Results”
- 19.3 kg
- Weight
- 110 W
- Power
- 3000 rpm
- Speed
Call sales +91 7600 252525Prices on request
Spec sheet (image)
Specification
Technical data
BeveleX AB 24 · Plate beveling machine
Capacity
- Bevel capacity
- 15°: 12 mm30°: 14 mm37.5°: 15.6 mm45°: 16 mm60°: 12.7 mm
Drive
- Motor power
- 110 W
- Speed
- 3000 rpm
- Power supply
- 220 V
Motion
- Feed
- Manual
Body
- Weight
- 19.3 kg
Overview
About the BeveleX range
The AllCut Beveling Machine is the ultimate solution for precise and efficient beveling operations. This cutting-edge machine is specifically designed to create smooth and accurate beveled edges on a variety of materials. With its advanced features and robust construction, the AllCut Beveling Machine ensures superior performance and durability. It offers a wide range of adjustable angles and cutting depths, allowing you to achieve the perfect bevel for your specific needs. Whether you're in metal fabrication, shipbuilding, or pipeline construction, the AllCut Beveling Machine is your trusted companion for achieving professional-grade bevels with ease and efficiency.
Key benefits
-
Versatility: capable of handling different materials and bevel angles, meeting a wide range of project requirements.
-
Precision and Accuracy: consistently achieve flawless bevels for clean and accurate edges.
-
Ease of Use: designed for user convenience with straightforward controls, ensuring easy and trouble-free operation.
-
Durability: constructed with sturdy components to endure frequent use, offering long-lasting dependability.
-
Lightweight: simple to carry and maneuver, minimizing operator fatigue and enhancing portability.
Compare
Compare the BeveleX range
Plate and pipe beveling machines for weld preparation.
Open in the compare tool
| 3 models |
BeveleX AB 24
This machine
|
BeveleX PB 80
|
BeveleX PB 160
|
|---|---|---|---|
| Capacity | |||
| Bevel capacity | 15°: 12 mm30°: 14 mm37.5°: 15.6 mm45°: 16 mm60°: 12.7 mm | ||
| Pipe OD | 32–80 mm | 72–189 mm | |
| Pipe ID | 28–76 mm | 65–158 mm | |
| Drive | |||
| Motor power | 110 W | 750 W | 1000 W |
| Speed | 3000 rpm | 55 rpm | 35 rpm |
| Power supply | 220 V | 220 V | 220 V |
| Tooling | |||
| Cutting bits | 0°, 30°, 37.5° | 0°, 30°, 37.5° | |
| Motion | |||
| Feed | Manual | ||
| Spindle travel | 35 mm | 50 mm | |
| Body | |||
| Weight | 19.3 kg | 12 kg | 23 kg |
Enquiries
Talk to the people who build the machines.
Tell us the job — material, hole size, depth — and we will recommend the right machine and tooling. Prices on request.
