TwisTech 03 / 06
TwisTech 28

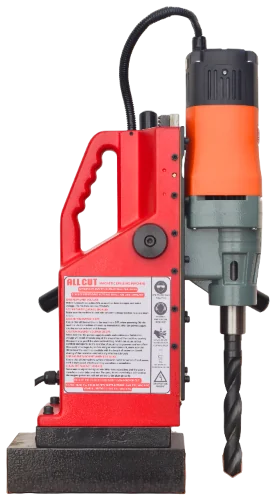

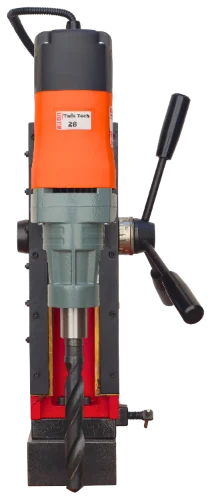

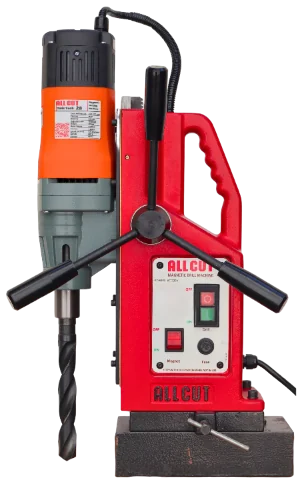

Magnetic drill machine
- 1500 W
- Power
- 28 mm
- Twist drilling
- 250 mm
- Stroke
- 28 kg
- Weight
- Universal base
- Overload protection
Call sales +91 7600 252525Prices on request
Data sheetSpecification
Technical data
TwisTech 28 · Magnetic drill machine
Capacity
- Twist drilling Ø
- 28 mm
- Twist drilling depth
- 200 mm
- Reaming Ø
- 28 mm
Drive
- Motor power
- 1500 W
- Power supply
- 220 V
- Gearbox
- 1-speed
- Speed
- 550 rpm
Tooling
- Spindle
- MT-3
Motion
- Stroke
- 250 mm
Magnet & body
- Magnet L × W × H
- 235 × 120 × 65 mm
- Weight
- 28 kg
Overview
About the TwisTech 28
The Allcut Twistech 28 is an advanced magnetic drilling machine engineered for heavy-duty applications. Featuring a sturdy MT-3 shank and a substantial 28mm twist drilling capacity, it effortlessly tackles demanding drilling tasks with precision. Equipped with a swivel base, it offers enhanced flexibility, allowing operators to adjust drilling angles as needed for optimal results in industrial settings. Rotate 45 degrees clockwise and then counterclockwise, followed by a 10 mm movement in both directions after activating the electromagnet.
Accessories
Fits the TwisTech 28
-
Drill accessory
Extension tube
Morse taper extension tube.
-
Drill accessory
Drill sleeve
Morse taper reducer sleeves.
Compare
Compare the TwisTech range
Magnetic drills built around twist drilling, reaming and tapping.
Open in the compare tool
| 6 models |
TwisTech 16
|
TwisTech 23
|
TwisTech 28
This machine
|
TwisTech 28 V
|
TwisTech 31/2
|
TwisTech 31/2 V
|
|---|---|---|---|---|---|---|
| Capacity | ||||||
| Twist drilling Ø | 16 mm | 23 mm | 28 mm | 28 mm | 31 mm | 31 mm |
| Twist drilling depth | 150 mm | 200 mm | 200 mm | 200 mm | 250 mm | 250 mm |
| Tapping | M10 | M16 | M20 | M24 | ||
| Reaming Ø | 23 mm | 28 mm | 28 mm | 31 mm | 31 mm | |
| Drive | ||||||
| Motor power | 1380 W | 1500 W | 1500 W | 1500 W | 1800 W | 1800 W |
| Speed | 100–750 rpm | 100–640 rpm | 550 rpm | 100–640 rpm | 260/460 rpm | 60–460 rpm |
| Power supply | 220 V | 220 V | 220 V | 220 V | 220 V | 220 V |
| Gearbox | 1-speed | 1-speed | 1-speed | 2-speed | 2-speed | |
| Gear 1 | 260 rpm | |||||
| Gear 2 | 460 rpm | |||||
| Tooling | ||||||
| Spindle | Direct drill chuck | MT-2 | MT-3 | MT-3 | MT-3 | MT-3 |
| Motion | ||||||
| Stroke | 200 mm | 280 mm | 250 mm | 250 mm | 300 mm | 300 mm |
| Magnet & body | ||||||
| Magnet L × W × H | 175 × 75 × 35 mm | 210 × 105 × 50 mm | 235 × 120 × 65 mm | 230 × 115 × 60 mm | 245 × 125 × 60 mm | 240 × 125 × 60 mm |
| Magnetic force | 700 kgf | 1300 kgf | 1500 kgf | 2000 kgf | ||
| Weight | 10.5 kg | 18 kg | 28 kg | 28 kg | 30 kg | 31 kg |
| Size L × W × H | 290 × 165 × 380 mm | 310 × 110 × 410 mm | 310 × 110 × 480 mm | 335 × 190 × 480 mm | ||
Enquiries
Talk to the people who build the machines.
Tell us the job — material, hole size, depth — and we will recommend the right machine and tooling. Prices on request.
