TwisTech 23

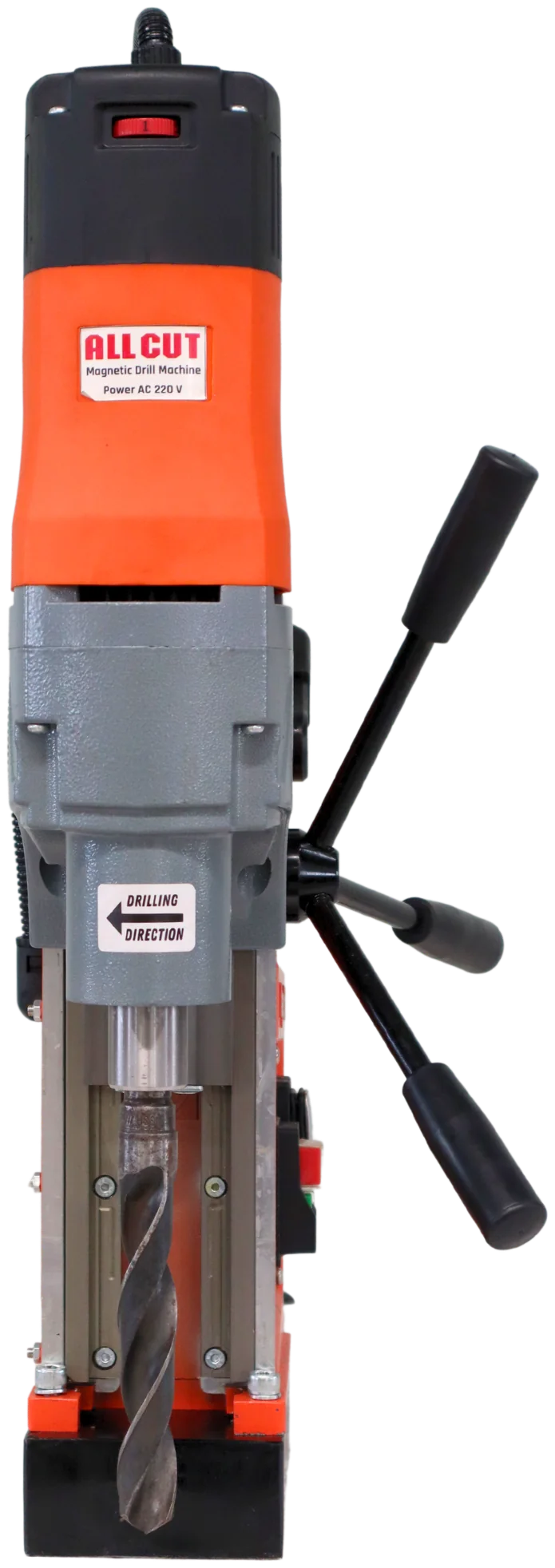

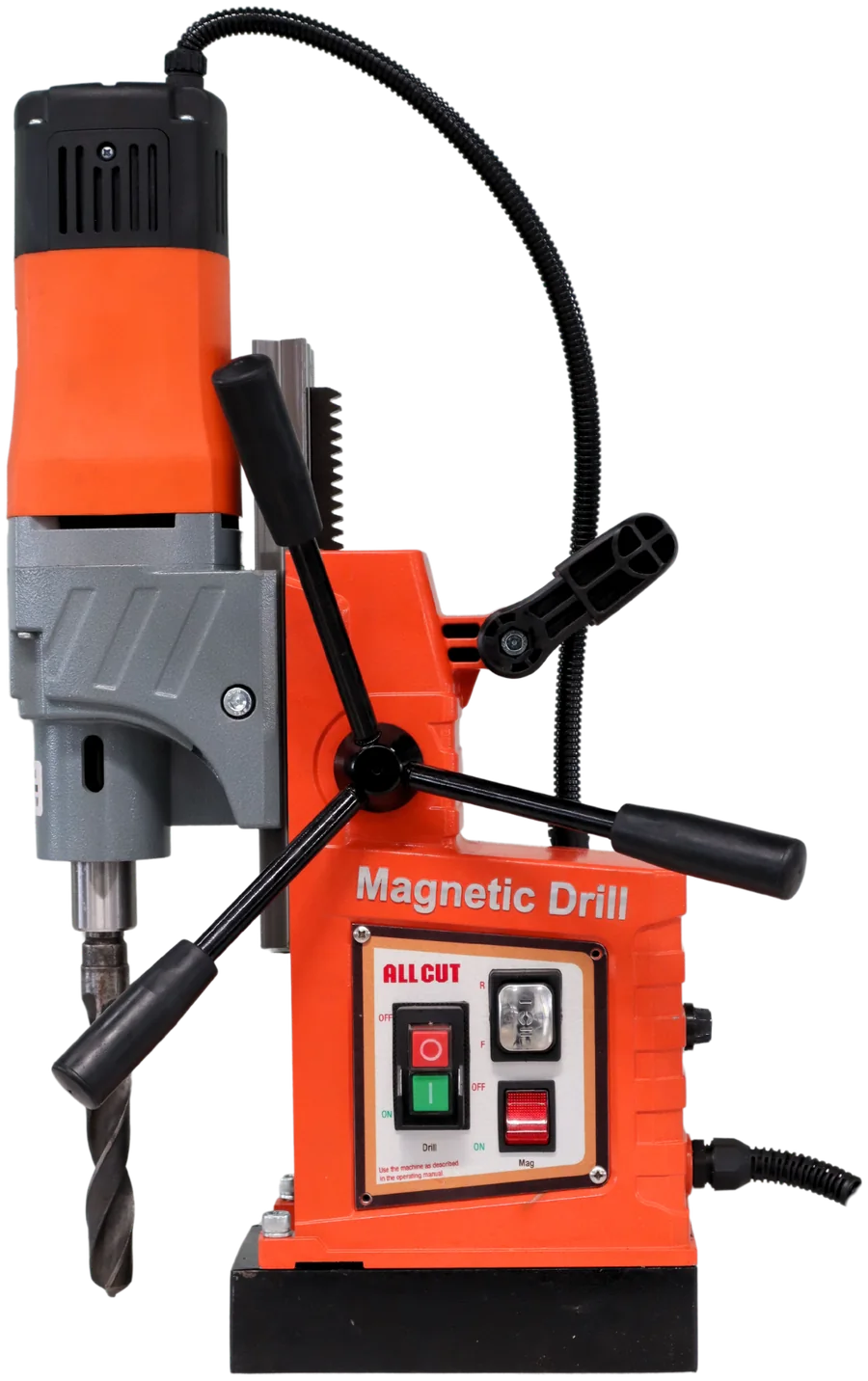

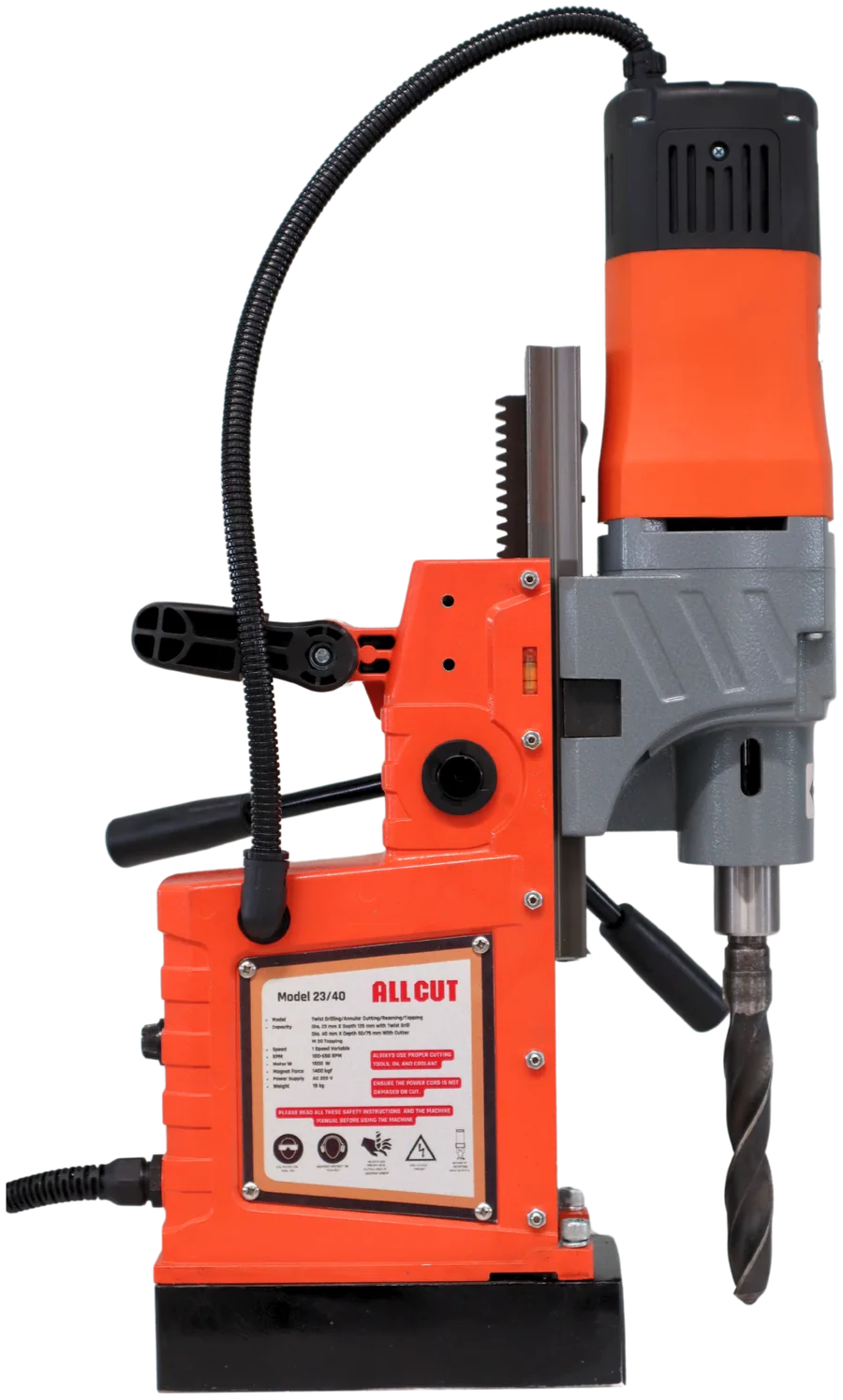

Magnetic drill machine
“Dynamic Twist Drilling Power”
- 18 kg
- Weight
- 1500 W
- Power
- 23 mm
- Twist drilling
- 60 mm
- Stroke adjustment
- Electronic speed control
- Reverse / forward
- Head height adjustment
- Stroke adjustment
- Overload protection
Call sales +91 7600 252525Prices on request
Data sheetSpecification
Technical data
TwisTech 23 · Magnetic drill machine
Capacity
- Twist drilling Ø
- 23 mm
- Twist drilling depth
- 200 mm
- Tapping
- M16
- Reaming Ø
- 23 mm
Drive
- Motor power
- 1500 W
- Speed
- 100–640 rpm
- Power supply
- 220 V
- Gearbox
- 1-speed
Tooling
- Spindle
- MT-2
Motion
- Stroke
- 280 mm
Magnet & body
- Magnet L × W × H
- 210 × 105 × 50 mm
- Magnetic force
- 1300 kgf
- Weight
- 18 kg
- Size L × W × H
- 310 × 110 × 410 mm
Overview
About the TwisTech range
The ALLCUT mag drills with Twist Drill is a winning combination that guarantees drilling efficiency and precision. Paired with the versatile Twist Drill, this unstoppable duo effortlessly cuts through various materials, with remarkable ease. Experience the perfect fusion of strength and finesse as the ALLCUT Mag Drill with Twist Drill takes your drilling projects to new heights, delivering exceptional results every time.
Key benefits
-
Direct MT-2 spindle.
-
Light weight: easy to carry within your site.
-
A powerful two-coil CNC machined steel magnet.
-
Rigid slide with stroke adjustment feature: minimum vibrations, more precision, increased life and more control over the machine.
-
Overload protection.
-
Can use the handle on both sides: gives versatility to complex jobs.
-
Powerful one speed gearbox.
-
Full control over the speed with electronic speed control.
-
Reverse and forward rotation: easy tapping.
Video
Watch the TwisTech 23
Accessories
Fits the TwisTech 23
-
Tapping chuck
TapMate collets
Tap collets with friction clutch.
-
Drill accessory
Extension tube
Morse taper extension tube.
-
Drill accessory
Drill sleeve
Morse taper reducer sleeves.
Compare
Compare the TwisTech range
Magnetic drills built around twist drilling, reaming and tapping.
Open in the compare tool
| 6 models |
TwisTech 16
|
TwisTech 23
This machine
|
TwisTech 28
|
TwisTech 28 V
|
TwisTech 31/2
|
TwisTech 31/2 V
|
|---|---|---|---|---|---|---|
| Capacity | ||||||
| Twist drilling Ø | 16 mm | 23 mm | 28 mm | 28 mm | 31 mm | 31 mm |
| Twist drilling depth | 150 mm | 200 mm | 200 mm | 200 mm | 250 mm | 250 mm |
| Tapping | M10 | M16 | M20 | M24 | ||
| Reaming Ø | 23 mm | 28 mm | 28 mm | 31 mm | 31 mm | |
| Drive | ||||||
| Motor power | 1380 W | 1500 W | 1500 W | 1500 W | 1800 W | 1800 W |
| Speed | 100–750 rpm | 100–640 rpm | 550 rpm | 100–640 rpm | 260/460 rpm | 60–460 rpm |
| Power supply | 220 V | 220 V | 220 V | 220 V | 220 V | 220 V |
| Gearbox | 1-speed | 1-speed | 1-speed | 2-speed | 2-speed | |
| Gear 1 | 260 rpm | |||||
| Gear 2 | 460 rpm | |||||
| Tooling | ||||||
| Spindle | Direct drill chuck | MT-2 | MT-3 | MT-3 | MT-3 | MT-3 |
| Motion | ||||||
| Stroke | 200 mm | 280 mm | 250 mm | 250 mm | 300 mm | 300 mm |
| Magnet & body | ||||||
| Magnet L × W × H | 175 × 75 × 35 mm | 210 × 105 × 50 mm | 235 × 120 × 65 mm | 230 × 115 × 60 mm | 245 × 125 × 60 mm | 240 × 125 × 60 mm |
| Magnetic force | 700 kgf | 1300 kgf | 1500 kgf | 2000 kgf | ||
| Weight | 10.5 kg | 18 kg | 28 kg | 28 kg | 30 kg | 31 kg |
| Size L × W × H | 290 × 165 × 380 mm | 310 × 110 × 410 mm | 310 × 110 × 480 mm | 335 × 190 × 480 mm | ||
Enquiries
Talk to the people who build the machines.
Tell us the job — material, hole size, depth — and we will recommend the right machine and tooling. Prices on request.
