TwisTech 06 / 06
TwisTech 31/2 V

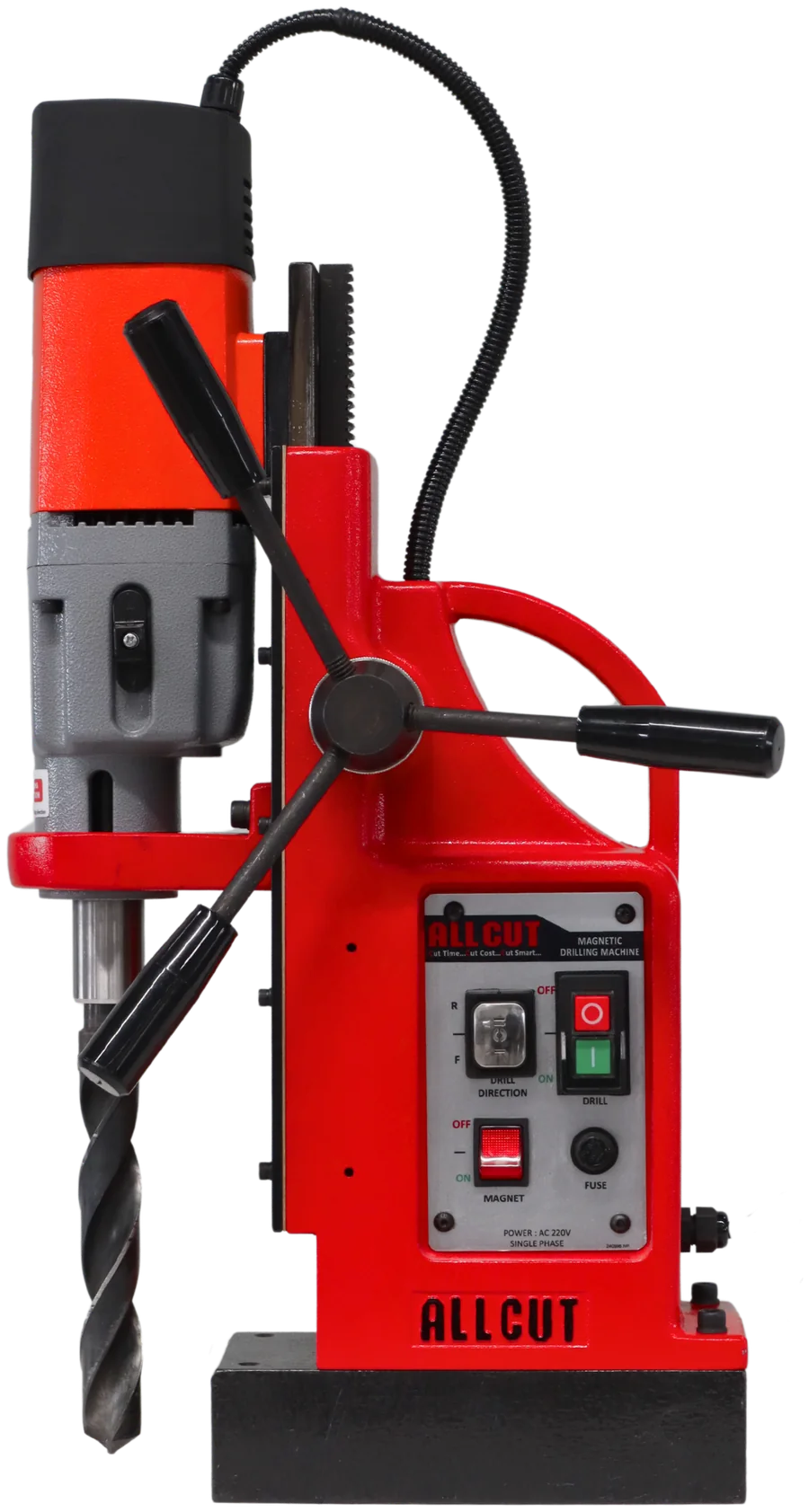

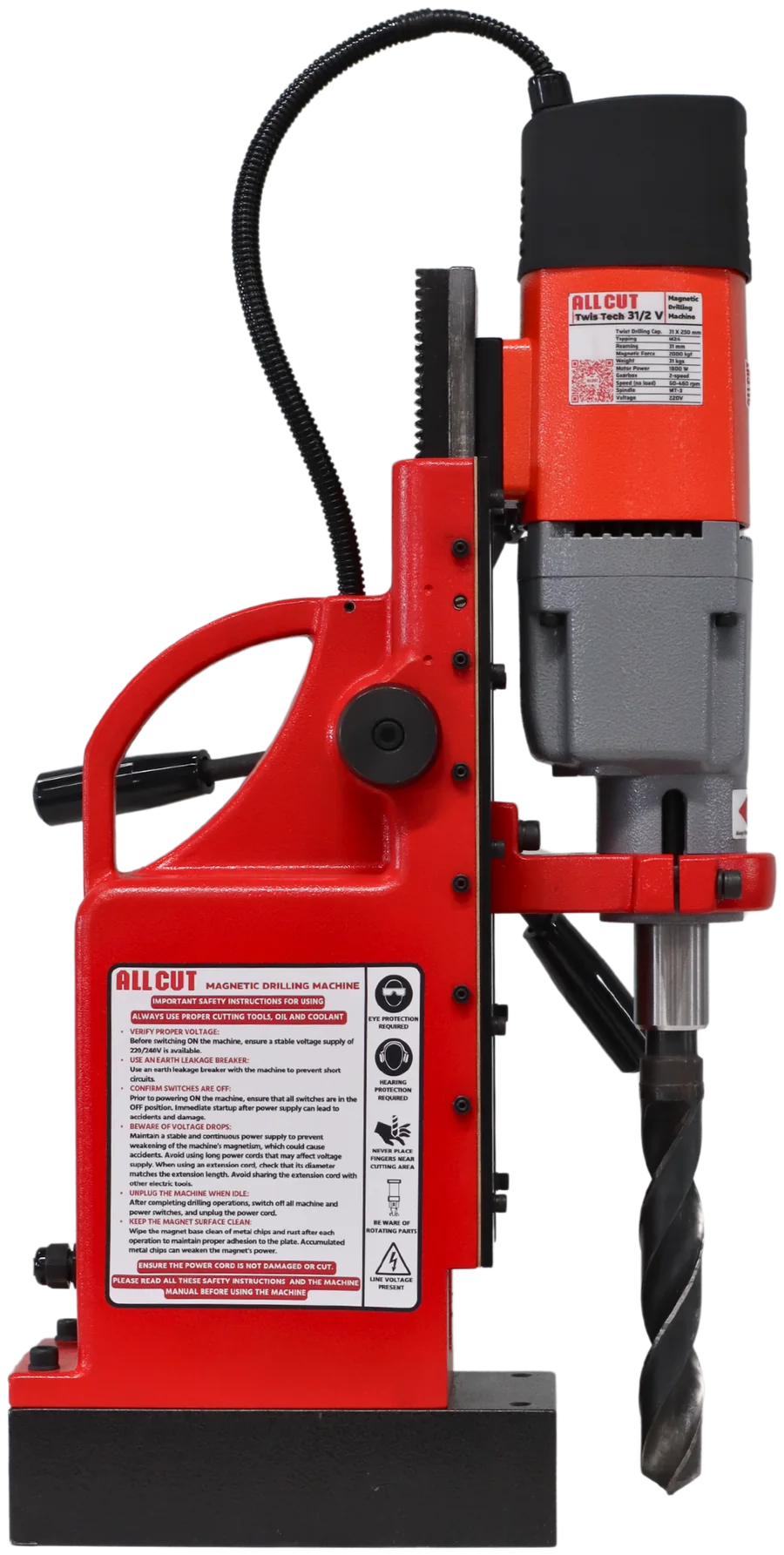

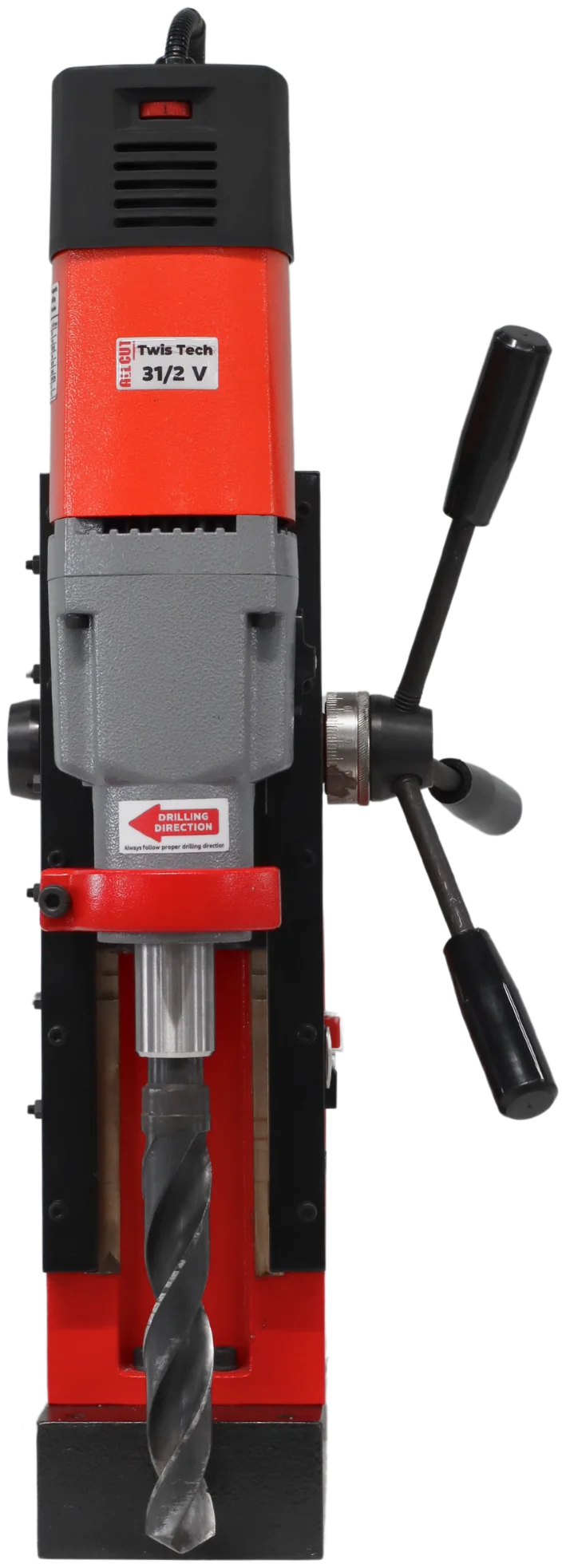

Magnetic drill machine
“Dynamic Twist Drilling Power”
- 31 kg
- Weight
- 1800 W
- Power
- 31 mm
- Twist drilling
- 250 mm
- Drilling depth
- Electronic speed control
- Reverse / forward
- Overload protection
Call sales +91 7600 252525Prices on request
Data sheetSpecification
Technical data
TwisTech 31/2 V · Magnetic drill machine
Capacity
- Twist drilling Ø
- 31 mm
- Twist drilling depth
- 250 mm
- Tapping
- M24
- Reaming Ø
- 31 mm
Drive
- Motor power
- 1800 W
- Gearbox
- 2-speed
- Speed
- 60–460 rpm
- Power supply
- 220 V
Tooling
- Spindle
- MT-3
Motion
- Stroke
- 300 mm
Magnet & body
- Magnet L × W × H
- 240 × 125 × 60 mm
- Magnetic force
- 2000 kgf
- Weight
- 31 kg
- Size L × W × H
- 335 × 190 × 480 mm
Overview
About the TwisTech range
The ALLCUT mag drills with Twist Drill is a winning combination that guarantees drilling efficiency and precision. Paired with the versatile Twist Drill, this unstoppable duo effortlessly cuts through various materials, with remarkable ease. Experience the perfect fusion of strength and finesse as the ALLCUT Mag Drill with Twist Drill takes your drilling projects to new heights, delivering exceptional results every time.
Key benefits
-
Direct MT-3 spindle.
-
A powerful two-coil CNC machined steel magnet.
-
Rigid steel slide: minimum vibrations, more precision, and increased life.
-
Overload protection.
-
Can use the handle on both sides: gives versatility to complex jobs.
-
Powerful two speed gearbox.
-
Full control over the speed with electronic speed control.
-
Reverse and forward rotation: easy tapping.
Accessories
Fits the TwisTech 31/2 V
-
Tapping chuck
TapMate MT-3
MT-3 tapping chuck with friction clutch.
-
Tapping chuck
TapMate collets
Tap collets with friction clutch.
-
Drill accessory
Extension tube
Morse taper extension tube.
-
Drill accessory
Drill sleeve
Morse taper reducer sleeves.
Compare
Compare the TwisTech range
Magnetic drills built around twist drilling, reaming and tapping.
Open in the compare tool
| 6 models |
TwisTech 16
|
TwisTech 23
|
TwisTech 28
|
TwisTech 28 V
|
TwisTech 31/2
|
TwisTech 31/2 V
This machine
|
|---|---|---|---|---|---|---|
| Capacity | ||||||
| Twist drilling Ø | 16 mm | 23 mm | 28 mm | 28 mm | 31 mm | 31 mm |
| Twist drilling depth | 150 mm | 200 mm | 200 mm | 200 mm | 250 mm | 250 mm |
| Tapping | M10 | M16 | M20 | M24 | ||
| Reaming Ø | 23 mm | 28 mm | 28 mm | 31 mm | 31 mm | |
| Drive | ||||||
| Motor power | 1380 W | 1500 W | 1500 W | 1500 W | 1800 W | 1800 W |
| Speed | 100–750 rpm | 100–640 rpm | 550 rpm | 100–640 rpm | 260/460 rpm | 60–460 rpm |
| Power supply | 220 V | 220 V | 220 V | 220 V | 220 V | 220 V |
| Gearbox | 1-speed | 1-speed | 1-speed | 2-speed | 2-speed | |
| Gear 1 | 260 rpm | |||||
| Gear 2 | 460 rpm | |||||
| Tooling | ||||||
| Spindle | Direct drill chuck | MT-2 | MT-3 | MT-3 | MT-3 | MT-3 |
| Motion | ||||||
| Stroke | 200 mm | 280 mm | 250 mm | 250 mm | 300 mm | 300 mm |
| Magnet & body | ||||||
| Magnet L × W × H | 175 × 75 × 35 mm | 210 × 105 × 50 mm | 235 × 120 × 65 mm | 230 × 115 × 60 mm | 245 × 125 × 60 mm | 240 × 125 × 60 mm |
| Magnetic force | 700 kgf | 1300 kgf | 1500 kgf | 2000 kgf | ||
| Weight | 10.5 kg | 18 kg | 28 kg | 28 kg | 30 kg | 31 kg |
| Size L × W × H | 290 × 165 × 380 mm | 310 × 110 × 410 mm | 310 × 110 × 480 mm | 335 × 190 × 480 mm | ||
Enquiries
Talk to the people who build the machines.
Tell us the job — material, hole size, depth — and we will recommend the right machine and tooling. Prices on request.
