MegaCore 35

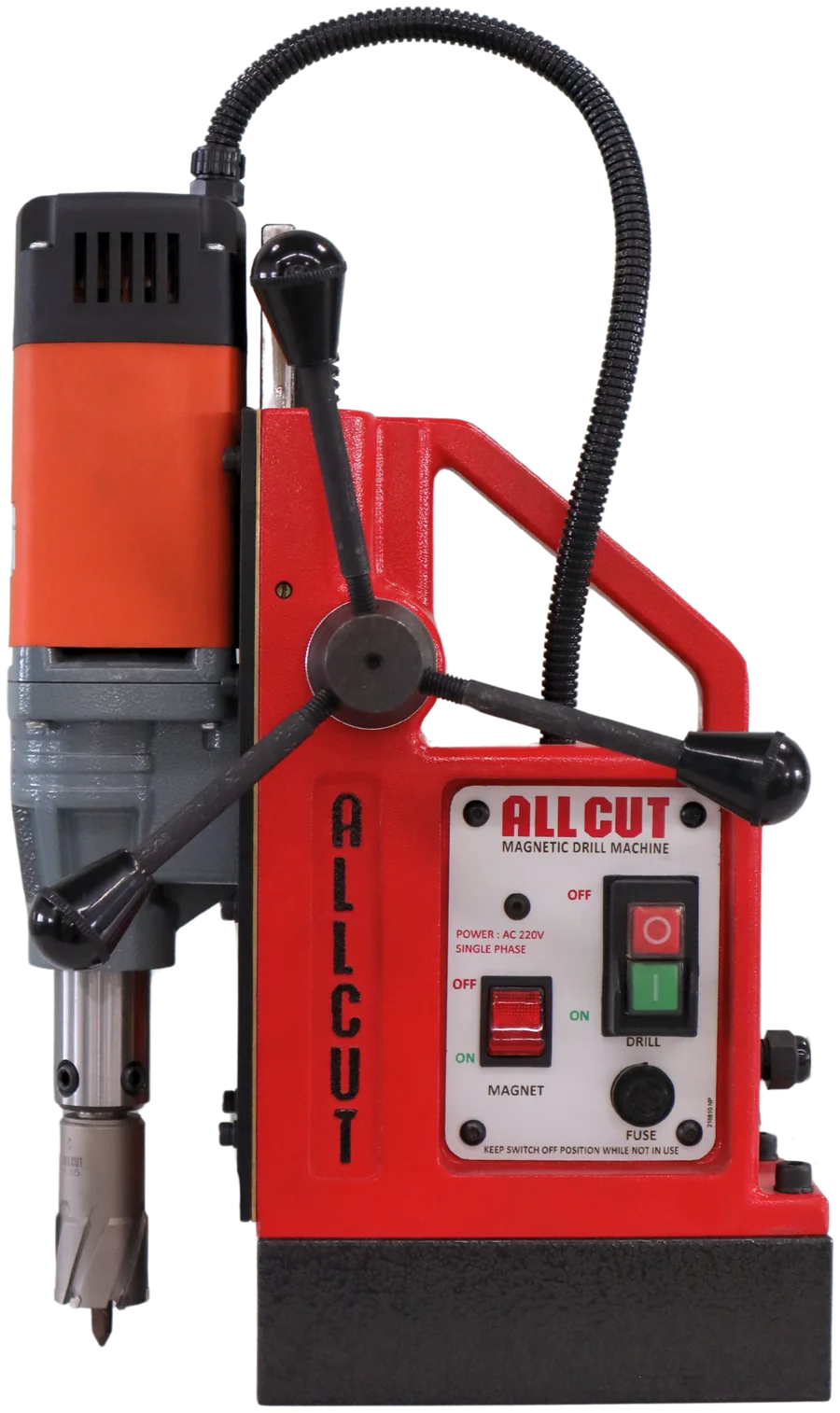

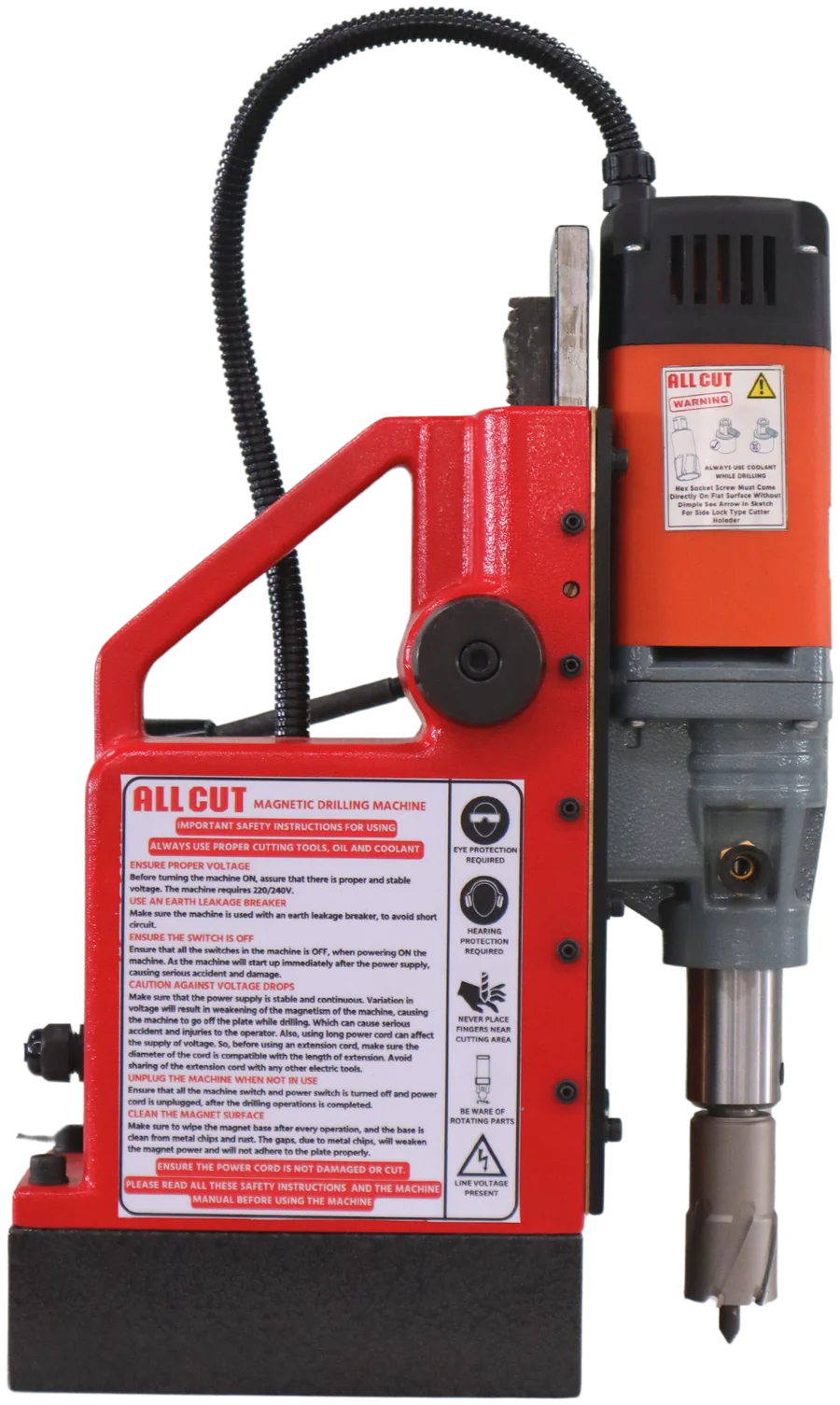

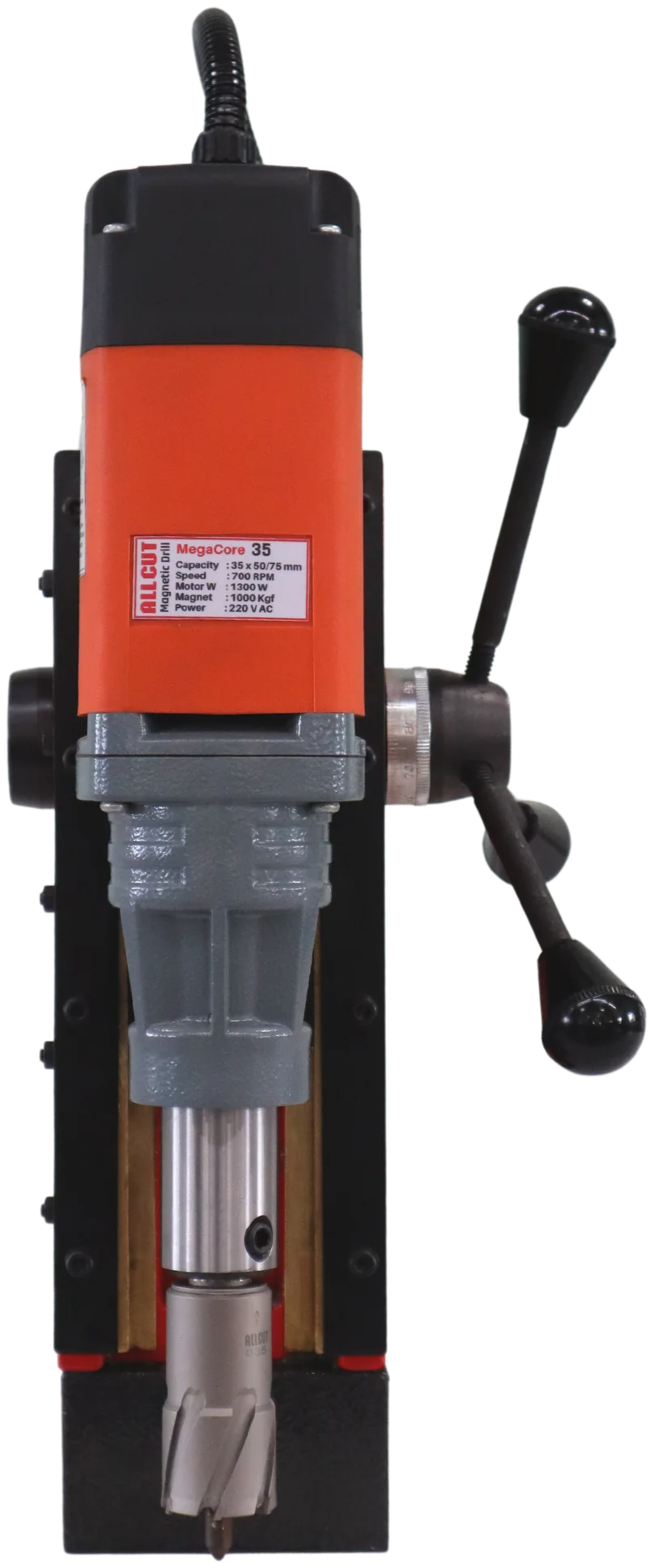

Magnetic drill machine
“Annular Cutters: Unleash Precision”
- 18 kg
- Weight
- 1300 W
- Power
- 35 mm
- Annular cutting
- 50/75 mm
- Cutter depth
- Overload protection
Call sales +91 7600 252525Prices on request
Data sheetSpecification
Technical data
MegaCore 35 · Magnetic drill machine
Capacity
- Annular cutting Ø
- 35 mm
- Cutter depth
- 50/75 mm
Drive
- Motor power
- 1300 W
- Speed
- 700 rpm
- Power supply
- 220 V
- Gearbox
- 1-speed
Tooling
- Spindle
- 19 mm Weldon shank
Motion
- Stroke
- 150 mm
Magnet & body
- Magnet L × W × H
- 200 × 100 × 60 mm
- Magnetic force
- 1000 kgf
- Weight
- 18 kg
- Size L × W × H
- 290 × 165 × 385 mm
Overview
About the MegaCore 35
The Allcut Megacore 35 stands out with its robust design and powerful performance, featuring a 35mm annular cutting capacity tailored for heavy-duty metalworking tasks. Equipped with a steel slide and a formidable motor, it ensures precision and efficiency in drilling operations across various materials. From structural steel to industrial fabrication, its reliability makes it a trusted choice for professionals seeking exceptional cutting capabilities in demanding work environments.
Key benefits
-
Direct 19 mm Weldon shank.
-
Most compact in its category.
-
Light weight: easy to carry and handle.
-
A powerful two-coil CNC machined steel magnet.
-
Rigid steel slide: minimum vibrations, more precision, and increased life.
-
Overload protection.
-
Can use the handle on both sides: gives versatility to complex jobs.
-
Powerful one speed gearbox.
-
Lower maintenance: higher productivity.
Compare
Compare the MegaCore range
Compact magnetic drills made for annular cutters on a direct 19 mm Weldon shank.
Open in the compare tool
| 5 models |
MegaCore 35
This machine
|
MegaCore 40
|
MegaCore 50 mini
|
MegaCore 50
|
MegaCore 55
|
|---|---|---|---|---|---|
| Capacity | |||||
| Annular cutting Ø | 35 mm | 40 mm | 50 mm | 50 mm | 55 mm |
| Cutter depth | 50/75 mm | 50/75 mm | 50 mm | 50/75 mm | 50/75 mm |
| Drive | |||||
| Motor power | 1300 W | 1380 W | 1300 W | 1050 W | 1500 W |
| Speed | 700 rpm | 50–500 rpm | 150–550 rpm | 375 rpm | 150–550 rpm |
| Power supply | 220 V | 220 V | 220 V | 220 V | 220 V |
| Gearbox | 1-speed | 1-speed | 1-speed | 1-speed | 1-speed |
| Tooling | |||||
| Spindle | 19 mm Weldon shank | 19 mm Weldon shank | 19 mm Weldon shank | 19 mm Weldon shank | 19 mm Weldon shank |
| Motion | |||||
| Stroke | 150 mm | 220 mm | 50 mm | 150 mm | 150 mm |
| Magnet & body | |||||
| Magnet L × W × H | 200 × 100 × 60 mm | 175 × 75 × 35 mm | 195 × 85 × 45 mm | 230 × 115 × 60 mm | 230 × 115 × 60 mm |
| Magnetic force | 1000 kgf | 1200 kgf | 900 kgf | 1500 kgf | 1500 kgf |
| Weight | 18 kg | 10.5 kg | 14 kg | 28 kg | 28 kg |
| Size L × W × H | 290 × 165 × 385 mm | 240 × 115 × 370 mm | 360 × 120 × 180 mm | 305 × 120 × 585 mm | 340 × 120 × 580 mm |
Enquiries
Talk to the people who build the machines.
Tell us the job — material, hole size, depth — and we will recommend the right machine and tooling. Prices on request.
