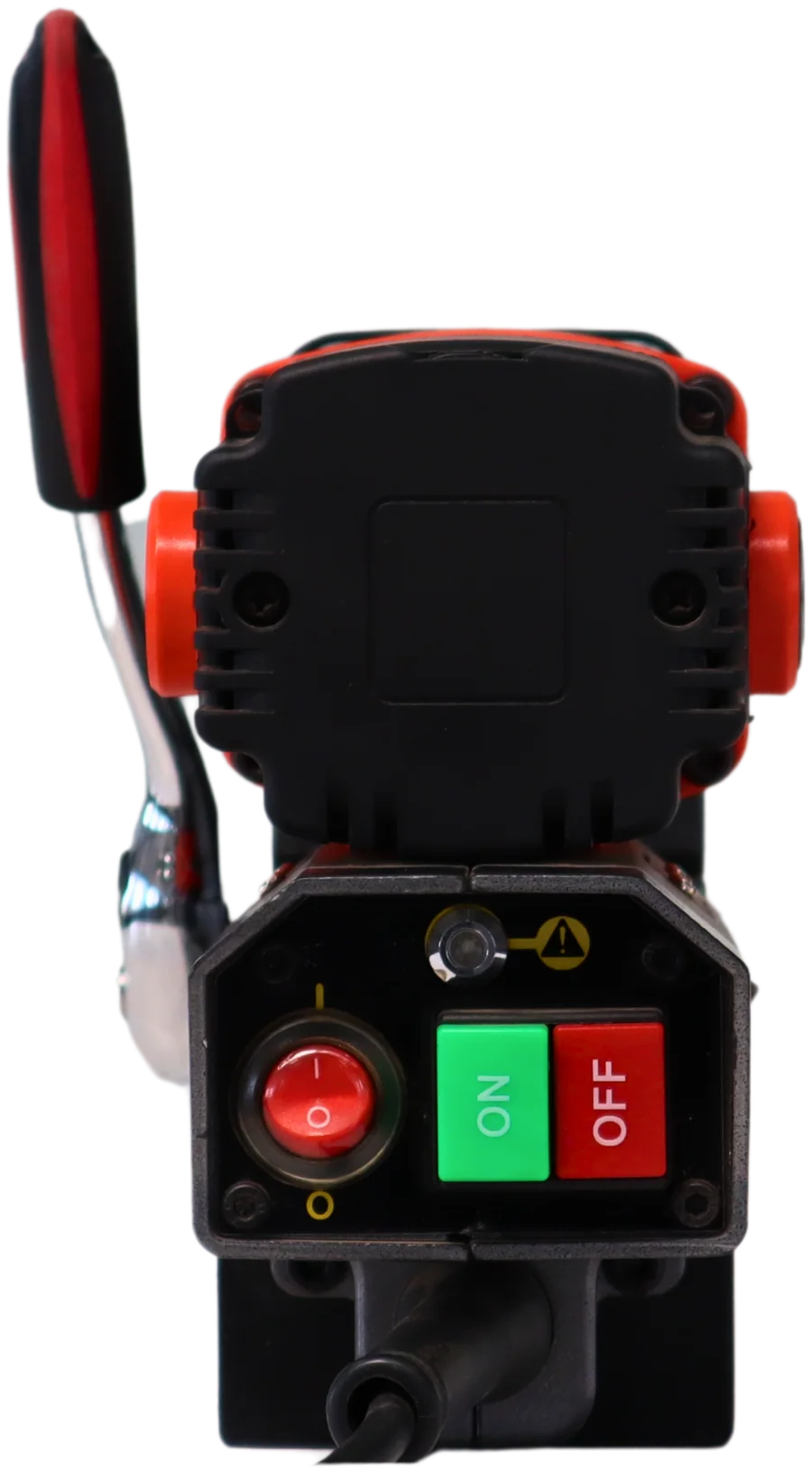

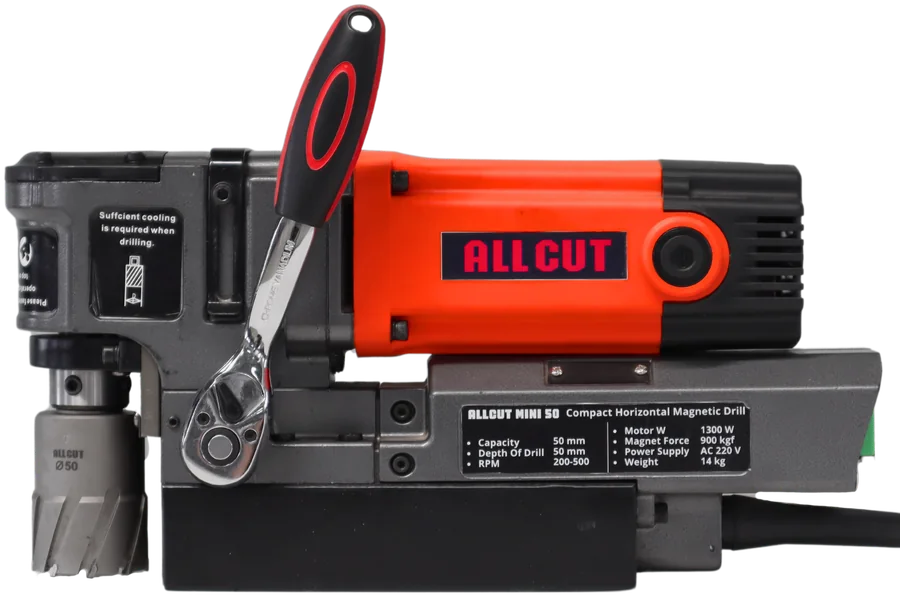

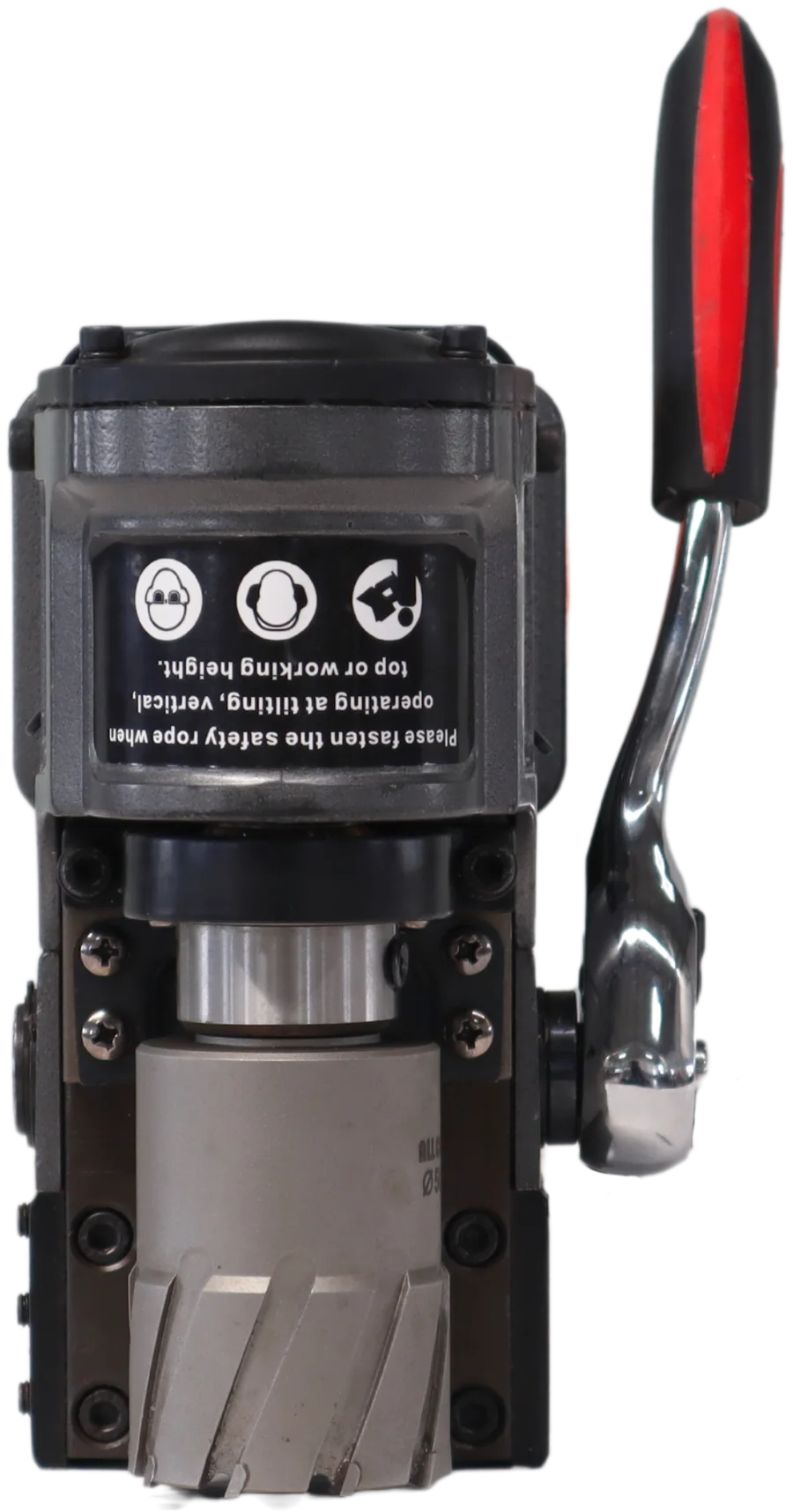

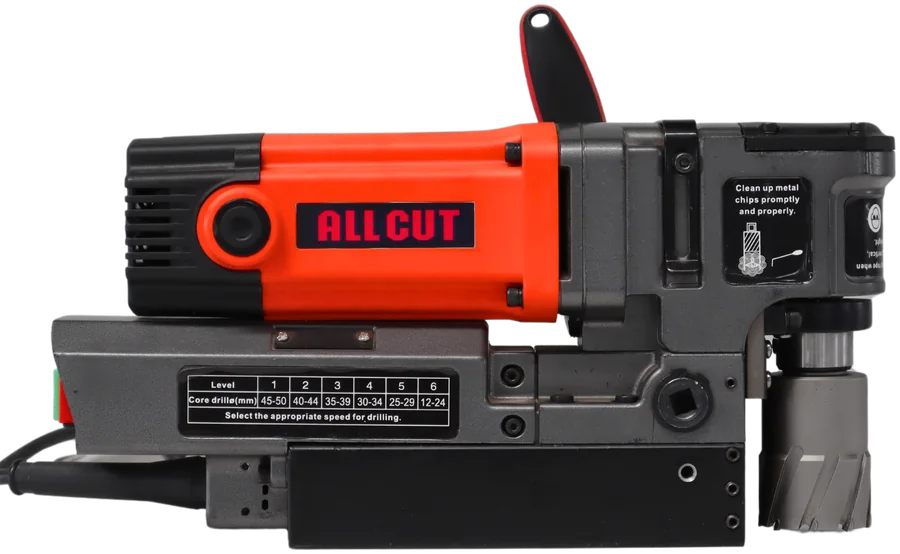

MegaCore 50 mini
Magnetic drill machine
“Annular Cutters: Unleash Precision”
- 14 kg
- Weight
- 1300 W
- Power
- 50 mm
- Annular cutting
- 50 mm
- Cutter depth
- Electronic speed control
- Overload protection
Call sales +91 7600 252525Prices on request
Data sheetSpecification
Technical data
MegaCore 50 mini · Magnetic drill machine
Capacity
- Annular cutting Ø
- 50 mm
- Cutter depth
- 50 mm
Drive
- Motor power
- 1300 W
- Speed
- 150–550 rpm
- Power supply
- 220 V
- Gearbox
- 1-speed
Tooling
- Spindle
- 19 mm Weldon shank
Motion
- Stroke
- 50 mm
Magnet & body
- Magnet L × W × H
- 195 × 85 × 45 mm
- Magnetic force
- 900 kgf
- Weight
- 14 kg
- Size L × W × H
- 360 × 120 × 180 mm
Overview
About the MegaCore range
Experience the ultimate drilling power and efficiency with the ALLCUT Mag Drill paired with Annular Cutters. This dynamic combination is designed to tackle the toughest drilling tasks with ease. The Annular Cutters, known for their superior cutting performance, effortlessly remove material in a circular motion, creating clean and accurate holes in a fraction of the time.
Key benefits
-
Direct 19 mm Weldon shank.
-
Most compact in its category.
-
Light weight: easy to carry to heights and handle.
-
A powerful two-coil CNC machined steel magnet.
-
Rigid steel slide: minimum vibrations, more precision, and increased life.
-
Overload protection.
-
Powerful one speed gearbox.
-
Full control over the speed with electronic speed control.
-
Lower maintenance: higher productivity.
Video
Watch the MegaCore 50 mini
Compare
Compare the MegaCore range
Compact magnetic drills made for annular cutters on a direct 19 mm Weldon shank.
Open in the compare tool
| 5 models |
MegaCore 35
|
MegaCore 40
|
MegaCore 50 mini
This machine
|
MegaCore 50
|
MegaCore 55
|
|---|---|---|---|---|---|
| Capacity | |||||
| Annular cutting Ø | 35 mm | 40 mm | 50 mm | 50 mm | 55 mm |
| Cutter depth | 50/75 mm | 50/75 mm | 50 mm | 50/75 mm | 50/75 mm |
| Drive | |||||
| Motor power | 1300 W | 1380 W | 1300 W | 1050 W | 1500 W |
| Speed | 700 rpm | 50–500 rpm | 150–550 rpm | 375 rpm | 150–550 rpm |
| Power supply | 220 V | 220 V | 220 V | 220 V | 220 V |
| Gearbox | 1-speed | 1-speed | 1-speed | 1-speed | 1-speed |
| Tooling | |||||
| Spindle | 19 mm Weldon shank | 19 mm Weldon shank | 19 mm Weldon shank | 19 mm Weldon shank | 19 mm Weldon shank |
| Motion | |||||
| Stroke | 150 mm | 220 mm | 50 mm | 150 mm | 150 mm |
| Magnet & body | |||||
| Magnet L × W × H | 200 × 100 × 60 mm | 175 × 75 × 35 mm | 195 × 85 × 45 mm | 230 × 115 × 60 mm | 230 × 115 × 60 mm |
| Magnetic force | 1000 kgf | 1200 kgf | 900 kgf | 1500 kgf | 1500 kgf |
| Weight | 18 kg | 10.5 kg | 14 kg | 28 kg | 28 kg |
| Size L × W × H | 290 × 165 × 385 mm | 240 × 115 × 370 mm | 360 × 120 × 180 mm | 305 × 120 × 585 mm | 340 × 120 × 580 mm |
Enquiries
Talk to the people who build the machines.
Tell us the job — material, hole size, depth — and we will recommend the right machine and tooling. Prices on request.
