TwisTech 01 / 06
TwisTech 16

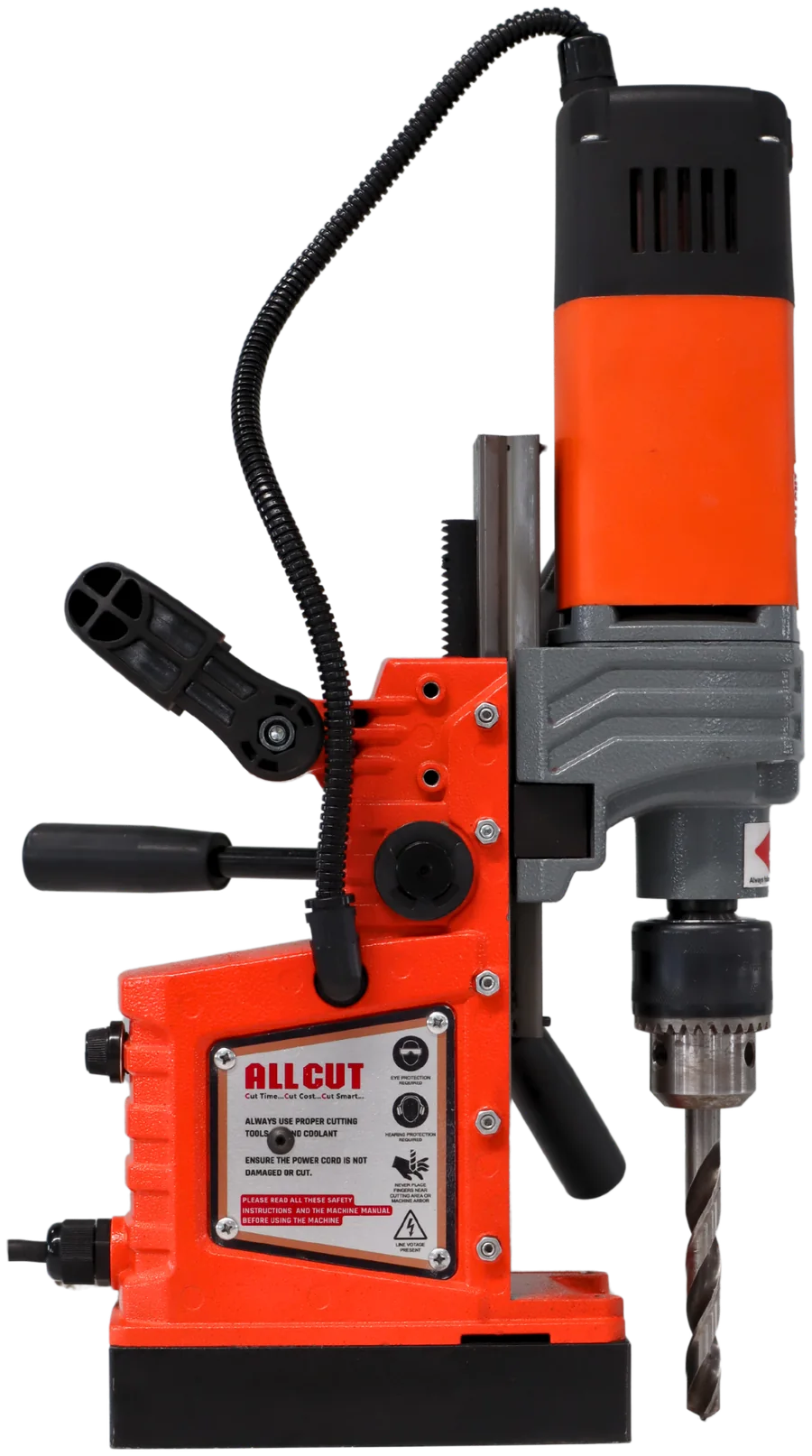

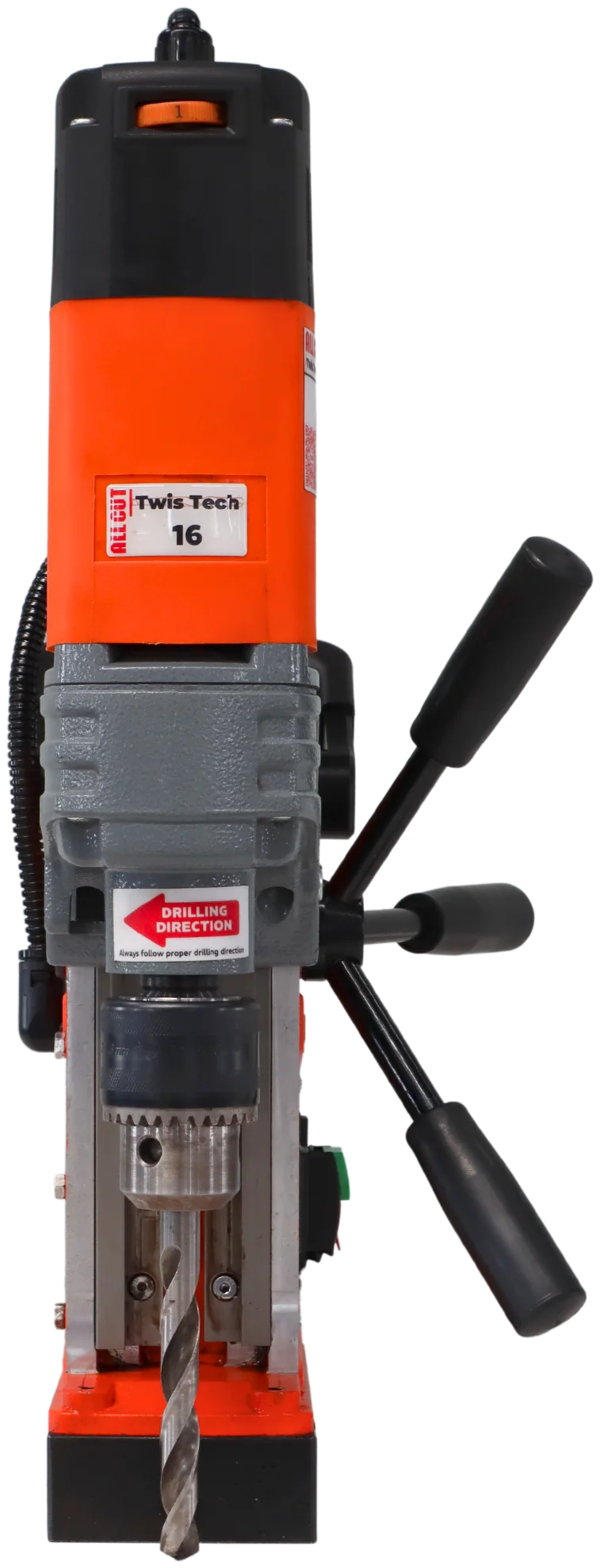

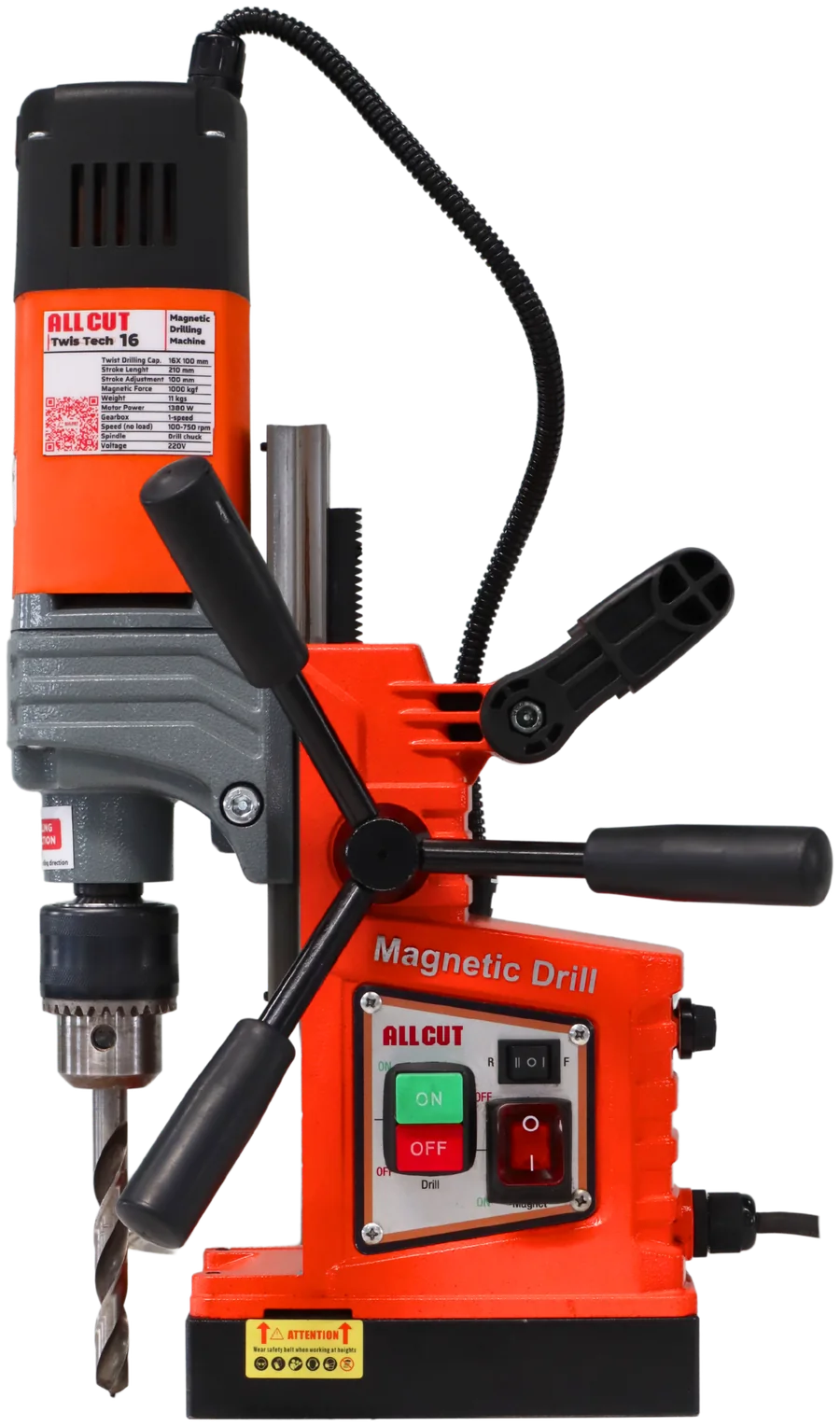

Magnetic drill machine
“Dynamic Twist Drilling Power”
- 10.5 kg
- Weight
- 1380 W
- Power
- 16 mm
- Twist drilling
- 150 mm
- Drilling depth
- Electronic speed control
- Reverse / forward
- Head height adjustment
- Stroke adjustment
- Overload protection
Call sales +91 7600 252525Prices on request
Data sheetSpecification
Technical data
TwisTech 16 · Magnetic drill machine
Capacity
- Twist drilling Ø
- 16 mm
- Twist drilling depth
- 150 mm
- Tapping
- M10
Drive
- Motor power
- 1380 W
- Speed
- 100–750 rpm
- Power supply
- 220 V
Tooling
- Spindle
- Direct drill chuck
Motion
- Stroke
- 200 mm
Magnet & body
- Magnet L × W × H
- 175 × 75 × 35 mm
- Magnetic force
- 700 kgf
- Weight
- 10.5 kg
- Size L × W × H
- 290 × 165 × 380 mm
Overview
About the TwisTech 16
The Allcut Twistech 16 magnetic drilling machine boasts a robust design capable of handling twist drilling tasks with ease, accommodating drill bits of up to 16 mm in diameter. Its powerful magnetic base ensures stability and precision, making it an ideal choice for professional drilling applications.
Key benefits
-
Direct gear rim chuck: hassle free tool changing.
-
Most compact in its category.
-
A powerful two-coil CNC machined steel magnet.
-
Rigid slide with stroke adjustment feature: minimum vibrations, more precision, increased life and more control over the machine.
-
Overload protection.
-
Can use the handle on both sides: gives versatility to complex jobs.
-
Powerful one speed gearbox.
-
Lower maintenance: higher productivity.
Video
Watch the TwisTech 16
Compare
Compare the TwisTech range
Magnetic drills built around twist drilling, reaming and tapping.
Open in the compare tool
| 6 models |
TwisTech 16
This machine
|
TwisTech 23
|
TwisTech 28
|
TwisTech 28 V
|
TwisTech 31/2
|
TwisTech 31/2 V
|
|---|---|---|---|---|---|---|
| Capacity | ||||||
| Twist drilling Ø | 16 mm | 23 mm | 28 mm | 28 mm | 31 mm | 31 mm |
| Twist drilling depth | 150 mm | 200 mm | 200 mm | 200 mm | 250 mm | 250 mm |
| Tapping | M10 | M16 | M20 | M24 | ||
| Reaming Ø | 23 mm | 28 mm | 28 mm | 31 mm | 31 mm | |
| Drive | ||||||
| Motor power | 1380 W | 1500 W | 1500 W | 1500 W | 1800 W | 1800 W |
| Speed | 100–750 rpm | 100–640 rpm | 550 rpm | 100–640 rpm | 260/460 rpm | 60–460 rpm |
| Power supply | 220 V | 220 V | 220 V | 220 V | 220 V | 220 V |
| Gearbox | 1-speed | 1-speed | 1-speed | 2-speed | 2-speed | |
| Gear 1 | 260 rpm | |||||
| Gear 2 | 460 rpm | |||||
| Tooling | ||||||
| Spindle | Direct drill chuck | MT-2 | MT-3 | MT-3 | MT-3 | MT-3 |
| Motion | ||||||
| Stroke | 200 mm | 280 mm | 250 mm | 250 mm | 300 mm | 300 mm |
| Magnet & body | ||||||
| Magnet L × W × H | 175 × 75 × 35 mm | 210 × 105 × 50 mm | 235 × 120 × 65 mm | 230 × 115 × 60 mm | 245 × 125 × 60 mm | 240 × 125 × 60 mm |
| Magnetic force | 700 kgf | 1300 kgf | 1500 kgf | 2000 kgf | ||
| Weight | 10.5 kg | 18 kg | 28 kg | 28 kg | 30 kg | 31 kg |
| Size L × W × H | 290 × 165 × 380 mm | 310 × 110 × 410 mm | 310 × 110 × 480 mm | 335 × 190 × 480 mm | ||
Enquiries
Talk to the people who build the machines.
Tell us the job — material, hole size, depth — and we will recommend the right machine and tooling. Prices on request.
