cutXpert 01 / 05
cutXpert 23/40

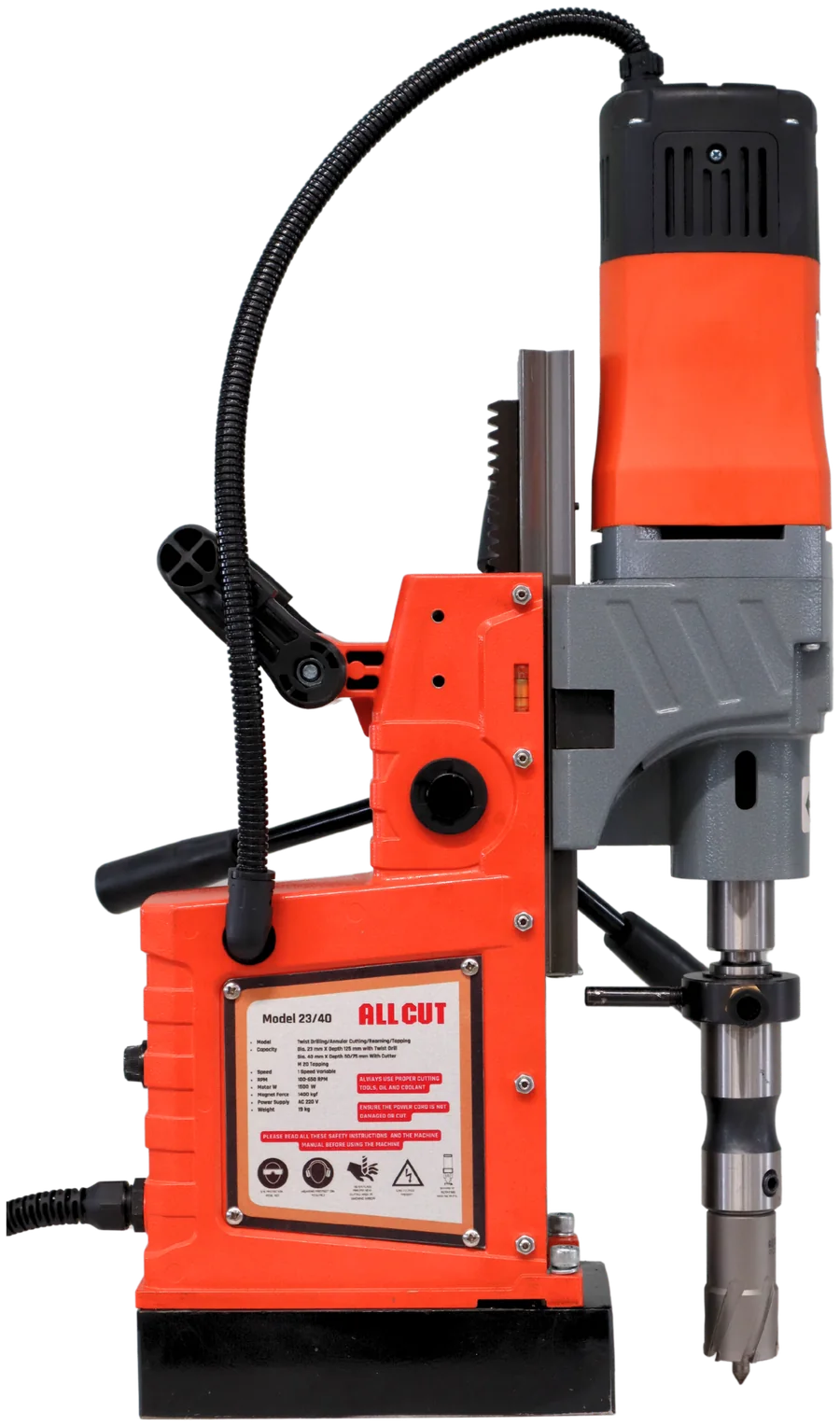

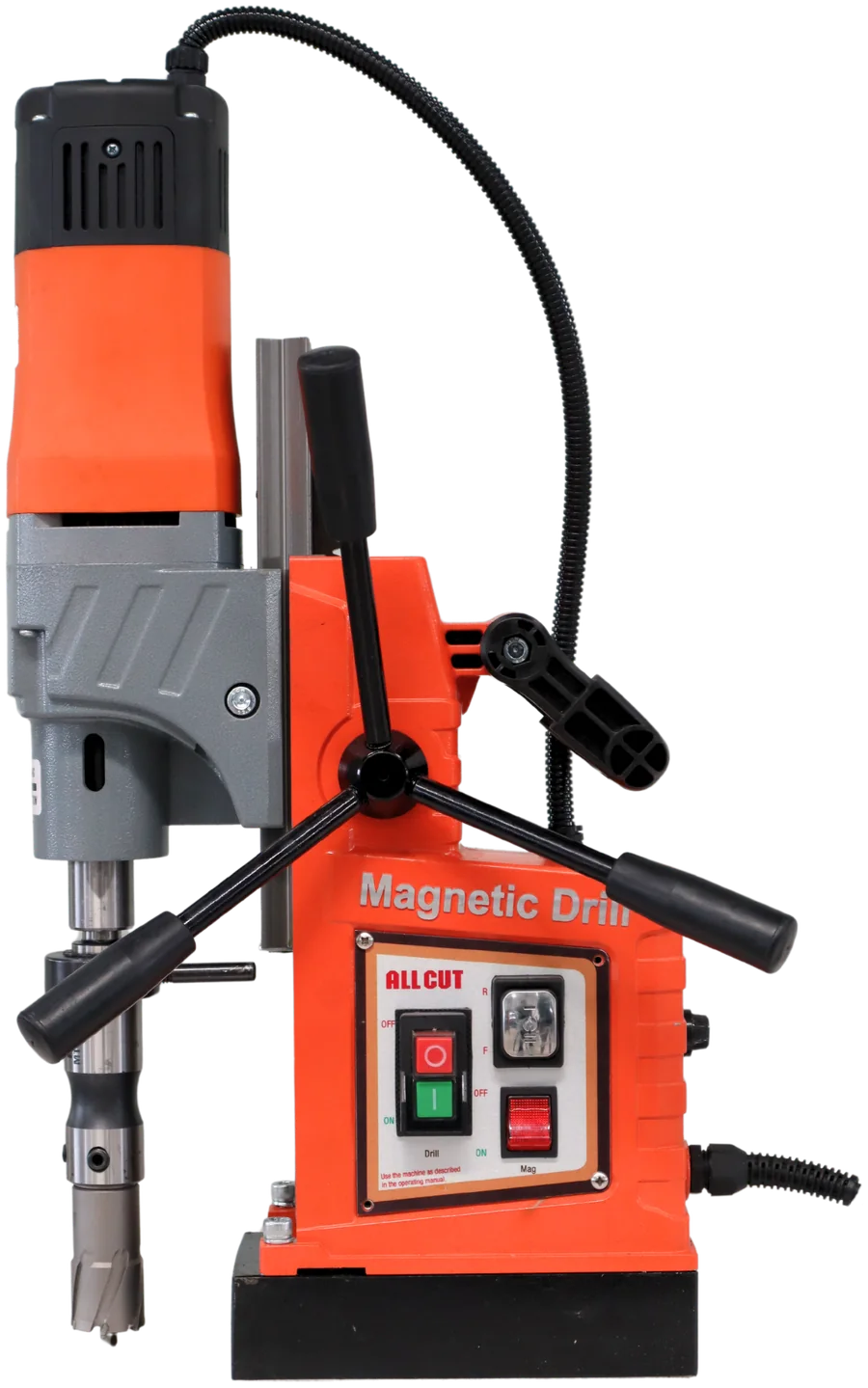

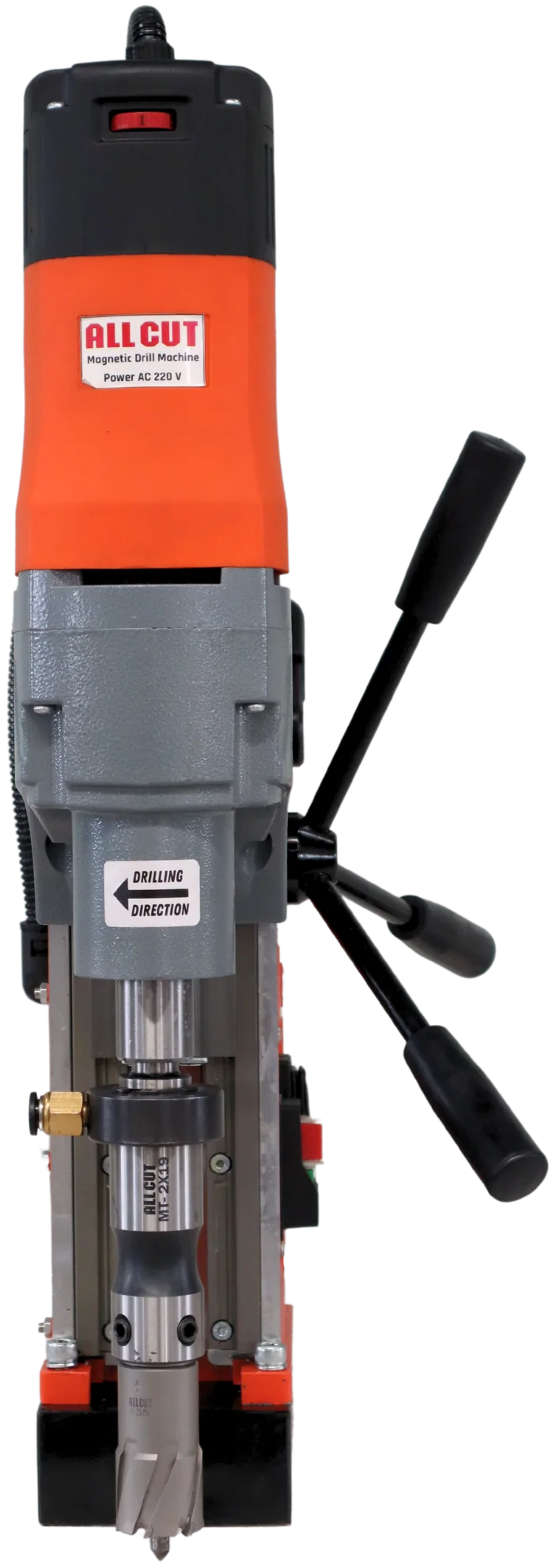

Magnetic drill machine
“Drill, Tap, Excel, Repeat!”
- 23 mm
- Twist drilling
- 40 mm
- Annular cutting
- 23 mm
- Reaming
- M16
- Tapping
- Electronic speed control
- Reverse / forward
- Head height adjustment
- Stroke adjustment
- Overload protection
Call sales +91 7600 252525Prices on request
Data sheetSpecification
Technical data
cutXpert 23/40 · Magnetic drill machine
Capacity
- Twist drilling Ø
- 23 mm
- Twist drilling depth
- 150 mm
- Annular cutting Ø
- 40 mm
- Cutter depth
- 50/75 mm
- Tapping
- M16
- Reaming Ø
- 23 mm
Drive
- Motor power
- 1500 W
- Speed
- 100–640 rpm
- Power supply
- 220 V
- Gearbox
- 1-speed
Tooling
- Spindle
- MT-2
- Adaptor
- MT-2 19 mm
Motion
- Stroke
- 280 mm
Magnet & body
- Magnet L × W × H
- 210 × 105 × 50 mm
- Magnetic force
- 1300 kgf
- Weight
- 18 kg
- Size L × W × H
- 310 × 110 × 410 mm
Overview
About the cutXpert range
Unlock the true potential of drilling with our multi-purpose ALLCUT Mag Drills. Designed to tackle a wide range of applications, these versatile tools are a game-changer for professionals. These innovative tools combine the power and precision of Mag Drills with the convenience of tapping capabilities, making them a game-changer in the drilling world.
Key benefits
-
Direct MT-2 spindle.
-
Most powerful and compact machine among all categories.
-
A powerful two-coil CNC machined steel magnet.
-
Rigid slide with stroke adjustment feature: minimum vibrations, more precision, increased life and more control over the machine.
-
Overload protection.
-
Powerful one speed gearbox.
-
Full control over the speed with electronic speed control.
-
Reverse and forward rotation: easy tapping.
-
Powerful combo of twist drills, annular cutters and tapping.
Accessories
Fits the cutXpert 23/40
-
Cutter adaptor
TaperMate MT-2 × 19
MT-2 × 19 mm adaptor with internal cooling.
-
Cutter adaptor
TaperMate MT-2 × 19 W
MT-2 × 19 mm adaptor without internal cooling.
-
Tapping chuck
TapMate MT-2
MT-2 tapping chuck with friction clutch.
-
Tapping chuck
TapMate collets
Tap collets with friction clutch.
-
Drill accessory
Extension tube
Morse taper extension tube.
-
Drill accessory
Drill sleeve
Morse taper reducer sleeves.
Compare
Compare the cutXpert range
Multi-purpose magnetic drills: twist drilling, annular cutting, reaming and tapping.
Open in the compare tool
| 5 models |
cutXpert 23/40
This machine
|
cutXpert 28/50 V
|
cutXpert 31/85
|
cutXpert 31/100
|
cutXpert 40/120
|
|---|---|---|---|---|---|
| Capacity | |||||
| Twist drilling Ø | 23 mm | 28 mm | 31 mm | 31 mm | 40 mm |
| Twist drilling depth | 150 mm | 200 mm | 250 mm | 250 mm | 220 mm |
| Annular cutting Ø | 40 mm | 50 mm | 85 mm | 100 mm | 120 mm |
| Cutter depth | 50/75 mm | 50/75 mm | 50/75/100 mm | 50/75/100 mm | 50/75/100 mm |
| Tapping | M16 | M20 | M24 | M30 | M33 |
| Reaming Ø | 23 mm | 28 mm | 31 mm | 31 mm | 40 mm |
| Drive | |||||
| Motor power | 1500 W | 1500 W | 1800 W | 2000 W | 2500 W |
| Speed | 100–640 rpm | 150–550 rpm | 60–430 rpm | 60–430 rpm | 30–300 rpm |
| Power supply | 220 V | 220 V | 220 V | 220 V | 220 V |
| Gearbox | 1-speed | 1-speed | 2-speed | 2-speed | 4-speed |
| Tooling | |||||
| Spindle | MT-2 | MT-3 | MT-3 | MT-3 | MT-4 |
| Adaptor | MT-2 19 mm | MT-3 19/32 mm | MT-3 19/32 | MT-3 19/32 | MT-4 19/32 mm |
| Motion | |||||
| Stroke | 280 mm | 250 mm | 280 mm | 280 mm | 220 mm |
| Magnet & body | |||||
| Magnet L × W × H | 210 × 105 × 50 mm | 230 × 115 × 60 mm | 240 × 125 × 60 mm | 240 × 125 × 60 mm | 280 × 115 × 55 mm |
| Magnetic force | 1300 kgf | 1500 kgf | 2000 kgf | 2100 kgf | 2100 kgf |
| Weight | 18 kg | 28 kg | 30 kg | 30 kg | 36 kg |
| Size L × W × H | 310 × 110 × 410 mm | 335 × 190 × 480 mm | 335 × 190 × 480 mm | 335 × 190 × 480 mm | 525 × 250 × 750 mm |
Enquiries
Talk to the people who build the machines.
Tell us the job — material, hole size, depth — and we will recommend the right machine and tooling. Prices on request.
